Be SMART about your suction and reduce your power bills

Cattani SMART Suction Systems use variable frequency inverter technology, also known as Variable Speed Drive (VSD),designed to provide consistent, high-performance suction while reducing energy costs.

Enquire Now

Specification

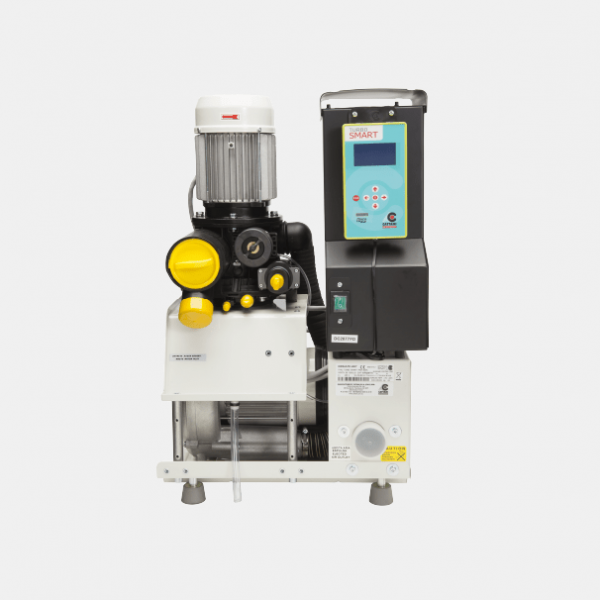

TURBO SMART A

ITEM CODEC-100000
NO OF SEATS2 to 3
POWER1PH, 7 A 1.22 kW
SIZE (W x H x D)645 * 400 * 330 MM
WEIGHT (KG)49
SOUND OUTPUT dB(A)69
MAX AIR FLOW 1/min1400
MAX VACUUM FOR
CONTINUOUS OPERATION  mBar		210
HYDROCYCLONE
AMALGAM RETENTION		NO



TURBO SMART A WITH ISO 18 HYDROCYCLONE

ITEM CODEC-1A0000
NO OF SEATS2 to 3
POWER1PH, 7 A 1.22 kW
SIZE (W x H x D)645 * 400 * 330 MM
WEIGHT (KG)50
SOUND OUTPUT dB(A)69
MAX AIR FLOW 1/min1400
MAX VACUUM FOR
CONTINUOUS OPERATION  mBar		210
HYDROCYCLONE
AMALGAM RETENTION		YES



TURBO SMART B

ITEM CODEC-200000
NO OF SEATS4
POWER1PH, 9 A, 1.5 kW
SIZE (W x H x D)645 * 400 * 330 MM
WEIGHT (KG)50
SOUND OUTPUT dB(A)73.7
MAX AIR FLOW 1/min1750
MAX VACUUM FOR
CONTINUOUS OPERATION  mBar		210
HYDROCYCLONE
AMALGAM RETENTION		NO

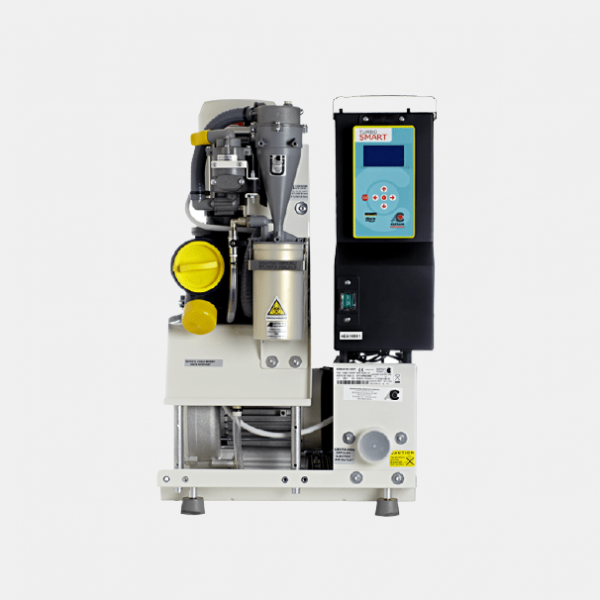

TURBO SMART B WITH ISO 18 HYDROCYCLONE

ITEM CODEC-2A0000
NO OF SEATS4
POWER1PH, 9 A 1.45 kW
SIZE (W x H x D)645 * 400 * 330 MM
WEIGHT (KG)50
SOUND OUTPUT dB(A)73.7
MAX AIR FLOW 1/min1750
MAX VACUUM FOR
CONTINUOUS OPERATION  mBar		210
HYDROCYCLONE
AMALGAM RETENTION		YES
