surgical device

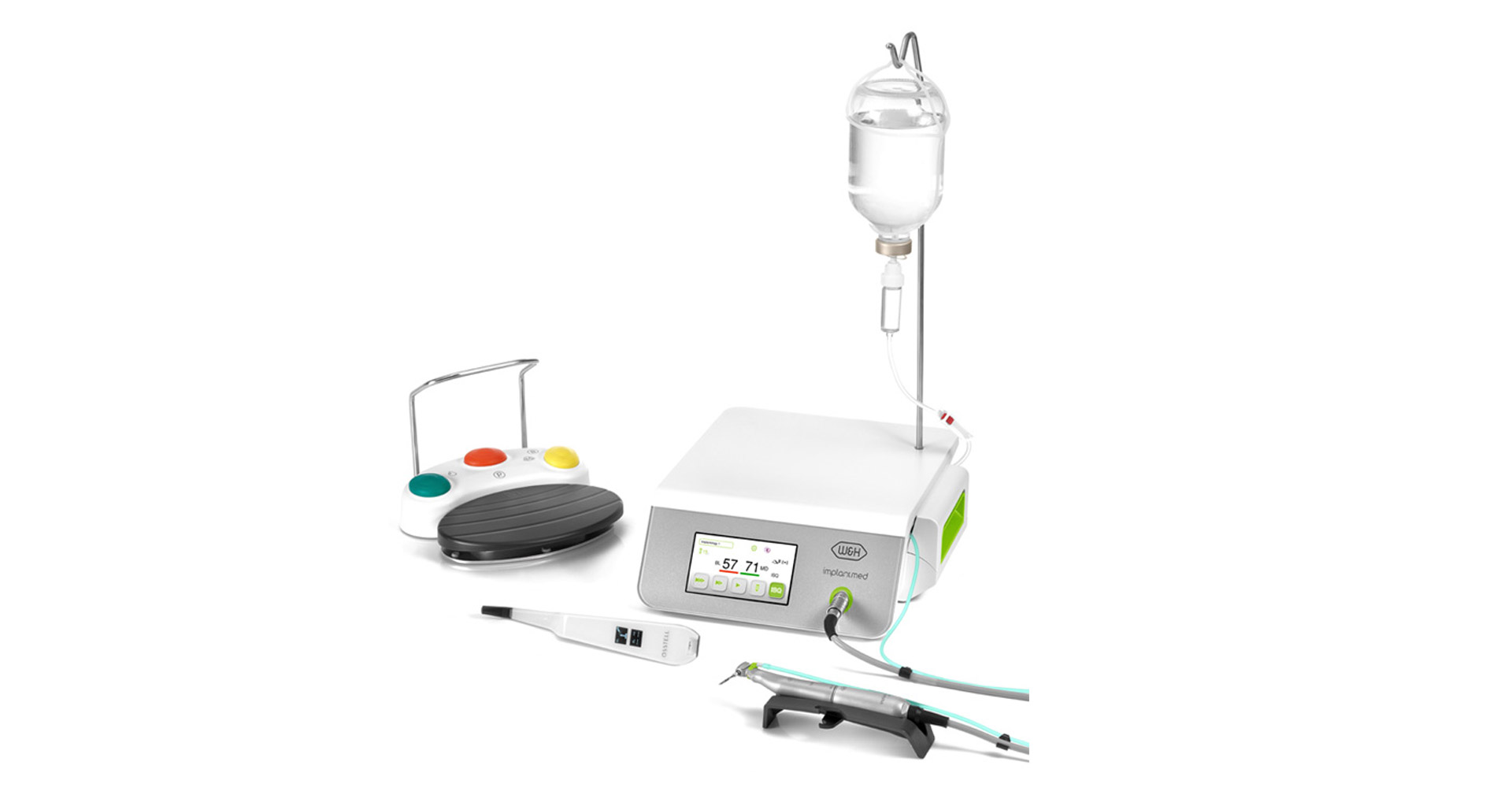

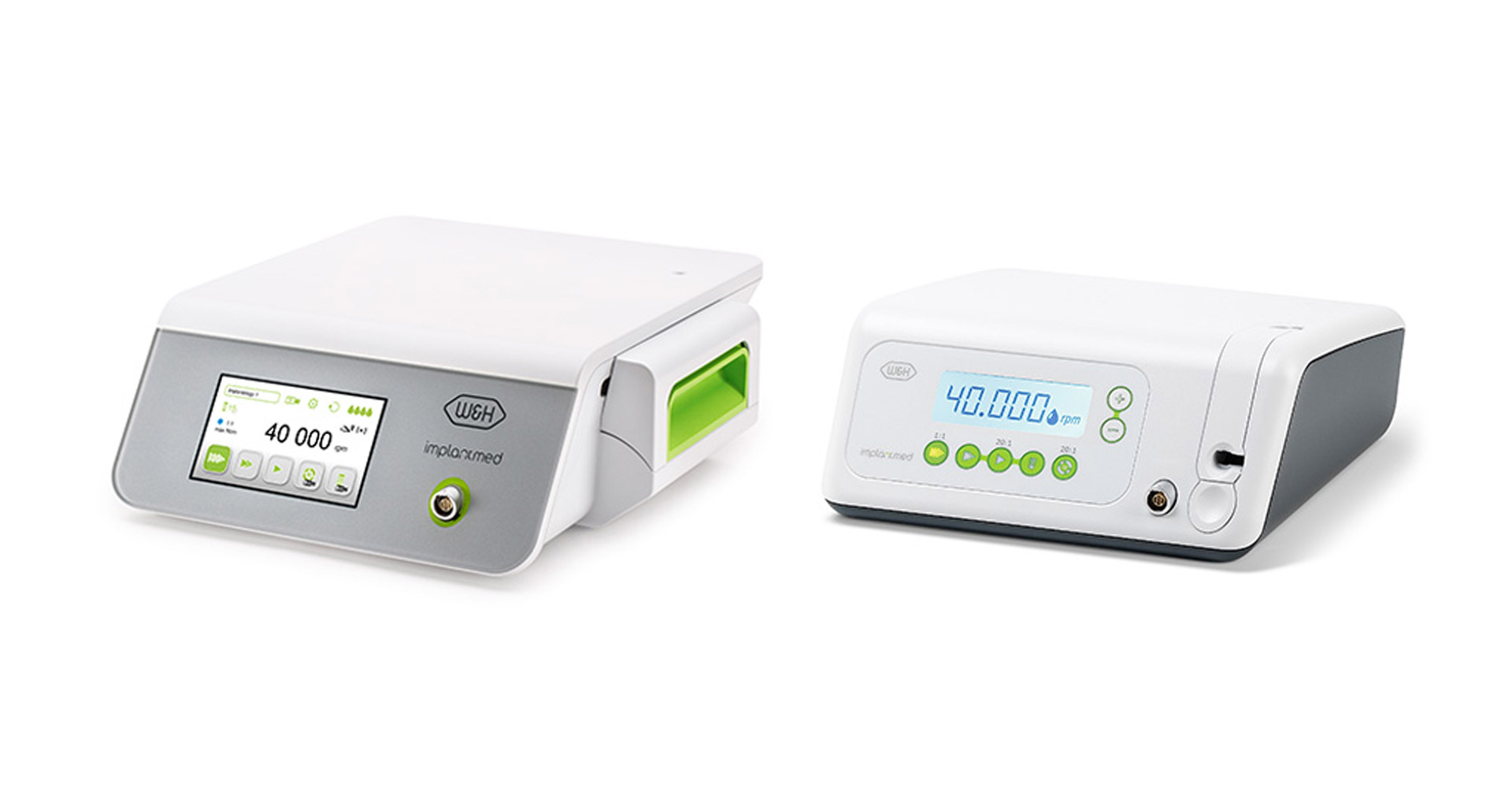

W&H Implantmed Plus
The power in the field of oral surgery and implantology.
With Implantmed, a high-quality, high-performance surgical motor is available for dental surgery, implantology and oral and maxillofacial surgery (OMS).
Ergonomic
With its ergonomic shape and perfect balance of motor and W&H contra-angle handpiece, it allows the user to work for an extended period without their hand starting to get tired.
Your reliable partner in implantology
Implantmed excels by virtue of its ease of operation, powerful motor and automatic thread cutter function.
The logically designed operating concept supports implantologists and ensures all programs can be set up easily, by pressing the buttons on the unit or by operating the foot control.
Specifications
| Type: | SI-1023 | SI-1015 | SI-1010 |
| Mains voltage: | 230 V | 120 V | 100 V |
| Permissible voltage fluctuation: | 220 – 240 V | 110 – 130 V | 90 – 110 V |
| Rated current: | 0.3 – 0.8 A | 0.3 – 1.6 A | 0.3 – 1.4 A |
| Frequency: | 50 / 60 Hz | ||
| Mains fuse (2 pcs): | 250 V – T1,6AH | ||
| Maximum power consumption: | 170 VA | ||
| Max. mechanical output power: | 80 W | ||
| Max. torque at the motor: | 6.2 Ncm | ||
| Motor speed range in the nominal voltage range: | 200 – 40,000 min -1 | ||
| Coolant flow rate at 100 %: | at least 90 ml/min | ||
| Height / width / depth: | 100 x 262 x 291 mm | ||
| Foot control: | S-N2 / S-NW | ||
| Straight and contra-angle handpieces with mini LED+: | S-11 L / WS-56 L, WS-75 L, WS-91 L, WS-92 L | ||
| Warranty: | 24 months | ||
