Make Your Operation Easier, Faster and More Professional

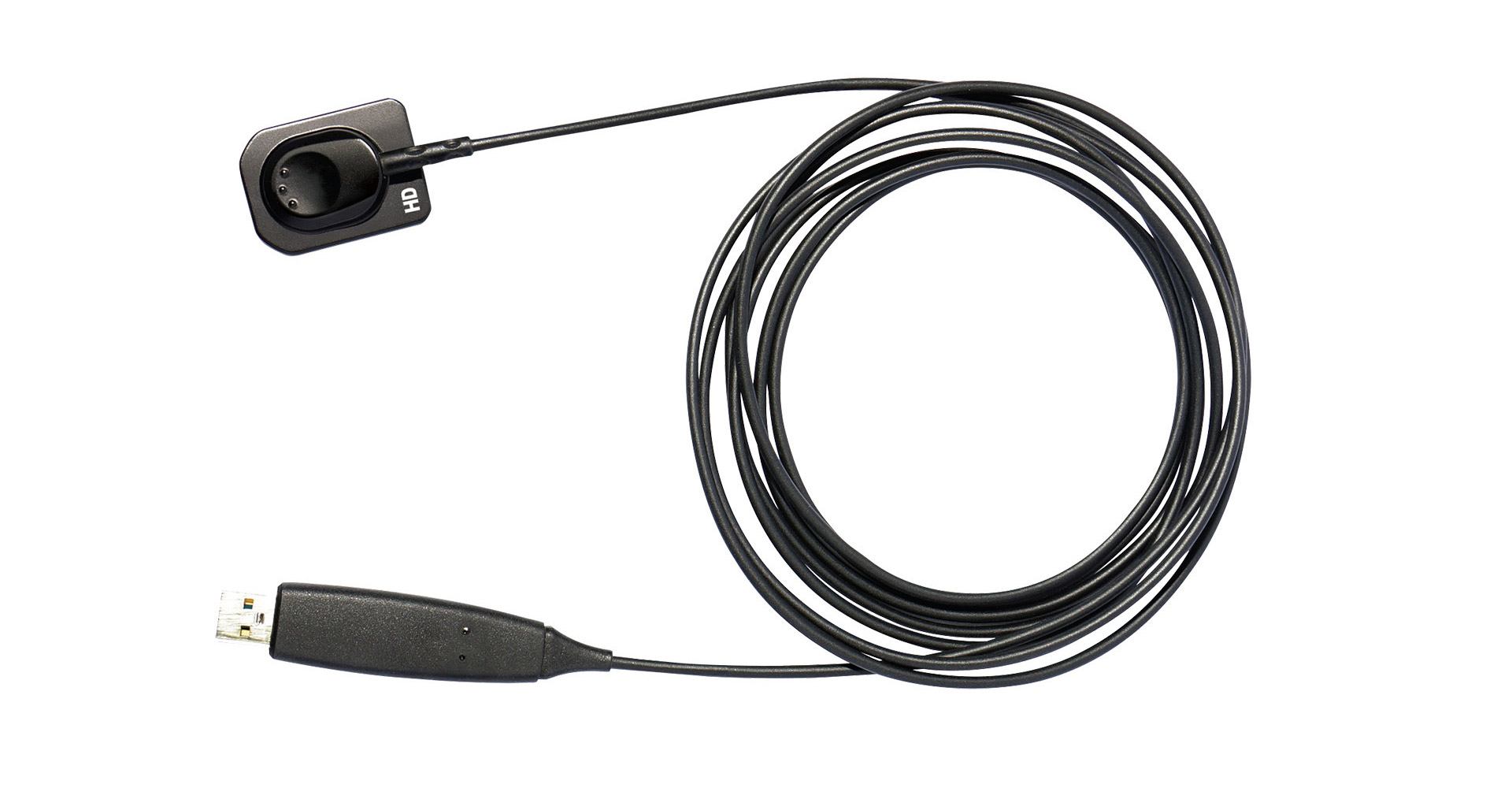

Vatech EzSensor HD
Precise And Professional Quality
1. 33.78 lp/mm Experience the High Resolution.
2. EzSensor HD will upgrade the existing intraoral sensor standards.
3. Innovation in Durability - upgraded usability and raise value.
4. Complete Protection Against Dust and Water.
2. EzSensor HD will upgrade the existing intraoral sensor standards.
3. Innovation in Durability - upgraded usability and raise value.
4. Complete Protection Against Dust and Water.

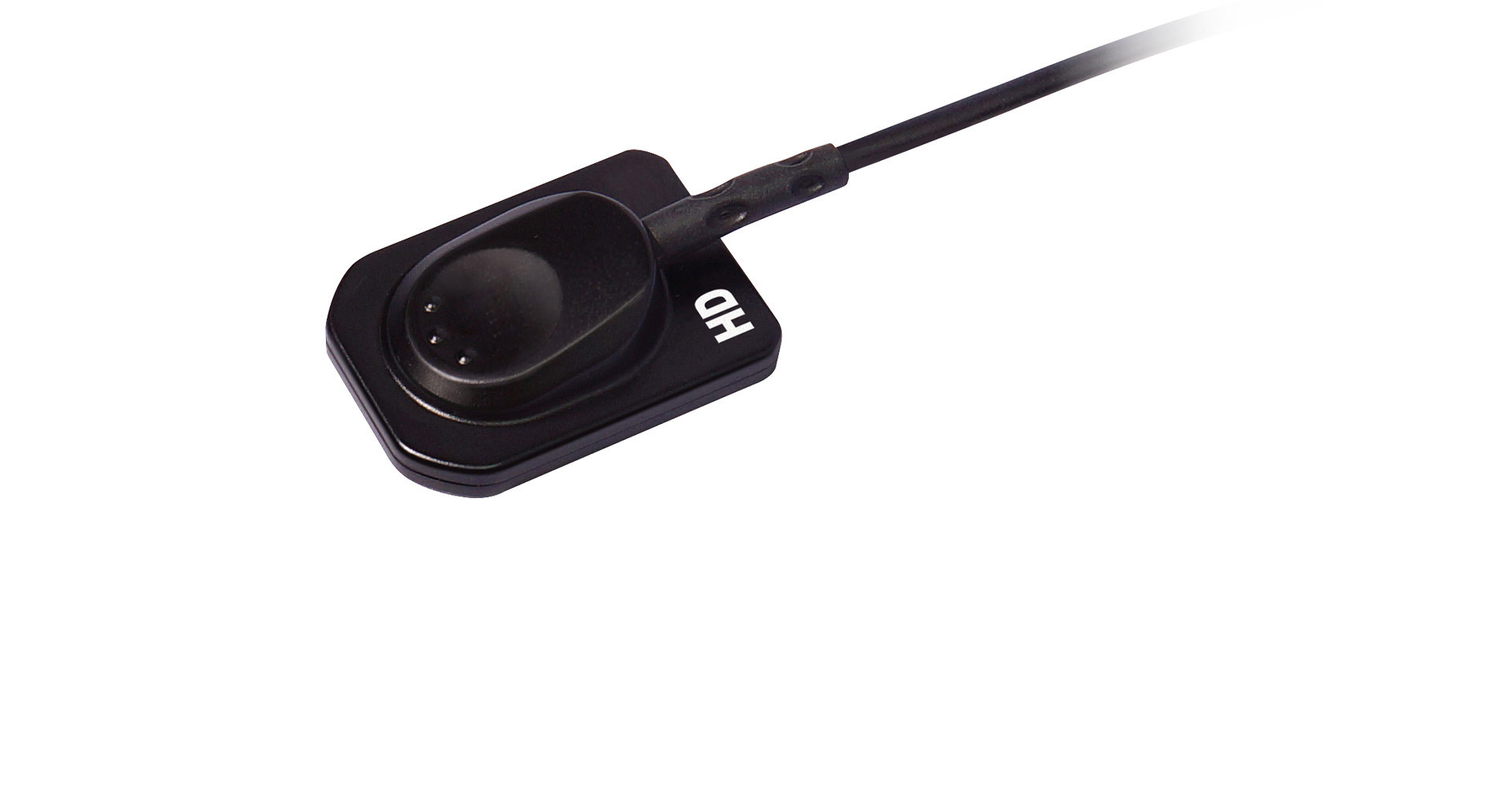

Enhanced Durability Through Cable Strain Relief
EzSensor HD is designed to prevent any kind of damages in its everyday use. Based on actual usage, our durability test includes bending up, down, left, right side and bending up to four times.
How did we create such a high quality sensor?
1. New image processing algorithm applied
2. Well balanced imaging factors – resolution, sensitivity, and noise
3. In-house manufacturing components (from CMOS design to viewer software)
2. Well balanced imaging factors – resolution, sensitivity, and noise
3. In-house manufacturing components (from CMOS design to viewer software)
Specifications
| Detector | CMOS | |
|---|---|---|
| Pixel Size | 14.8μm | |
| Theoretical Resolution | 33.78lp/mm | |
| Dynamic Range | 12 bit | |
| Active Area(WxL) | Size 1.0 _ 20 x 30mm Size 1.5 _ 24 x 33mm Size 2.0 _ 26 x 36mm |
|
| Dimensions(WxLxT) | Size 1.0 _ 25.4 x 36.8mm (1.00 X 1.45 inch) Size 1.5 _ 29.2 x 39.5mm (1.14 X 1.55 inch) Size 2.0 _ 31.3 x 42.9mm (1.23 X 1.69 inch) |
|
| Thickness | 4.8mm(0.19inch) | |
| Cable Length | 2.7m | |
