Durr Suction
Tyscor suction systems
Next generation
New standards in terms of performance and sustainability
The dry and wet suction systems from DÜRR DENTAL combine extremely powerful performance with exceptionally quiet operation. DÜRR DENTAL V suction units can easily withstand up to seven or eight hours of continuous operation. The substances that are sucked in are directed straight into the integrated separation unit and then, if necessary, into an amalgam separator. In addition to DÜRR DENTAL's usual quality and reliability, the newly developed suction systems with radial technology in the Tyscor premium range are up to 50% lighter and deliver potential energy savings of up to 75%. They truly are setting standards in performance and efficiency in day-to-day operation in the practice. An electronic control system also offers new options in terms of operational safety and reliability, scalability and adaptability to the individual practice conditions.

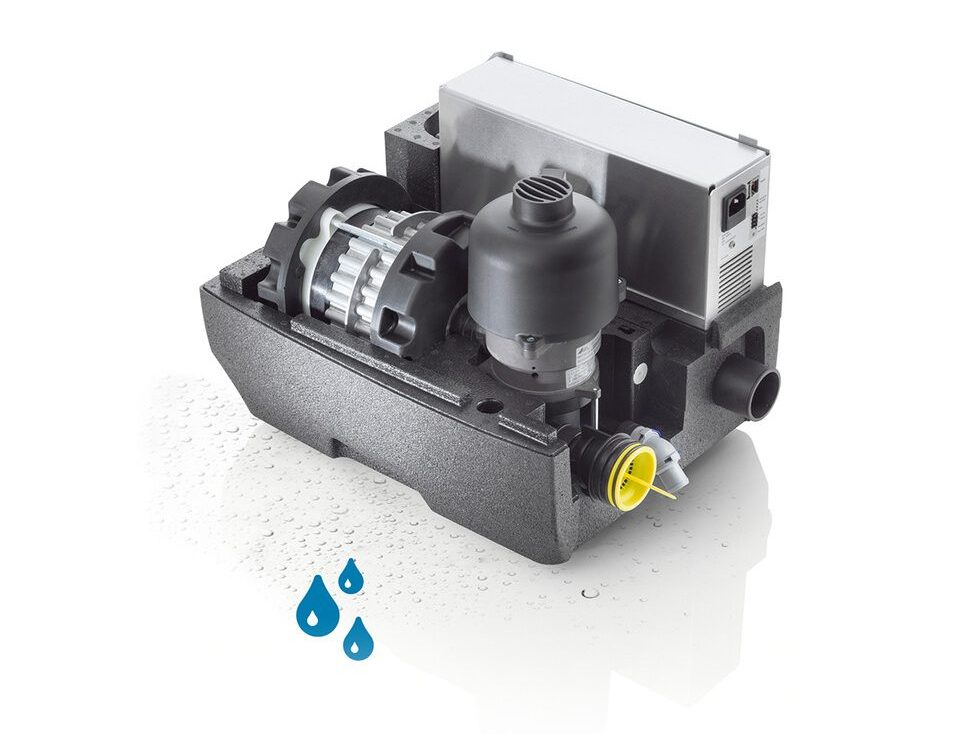

Wet suction systems

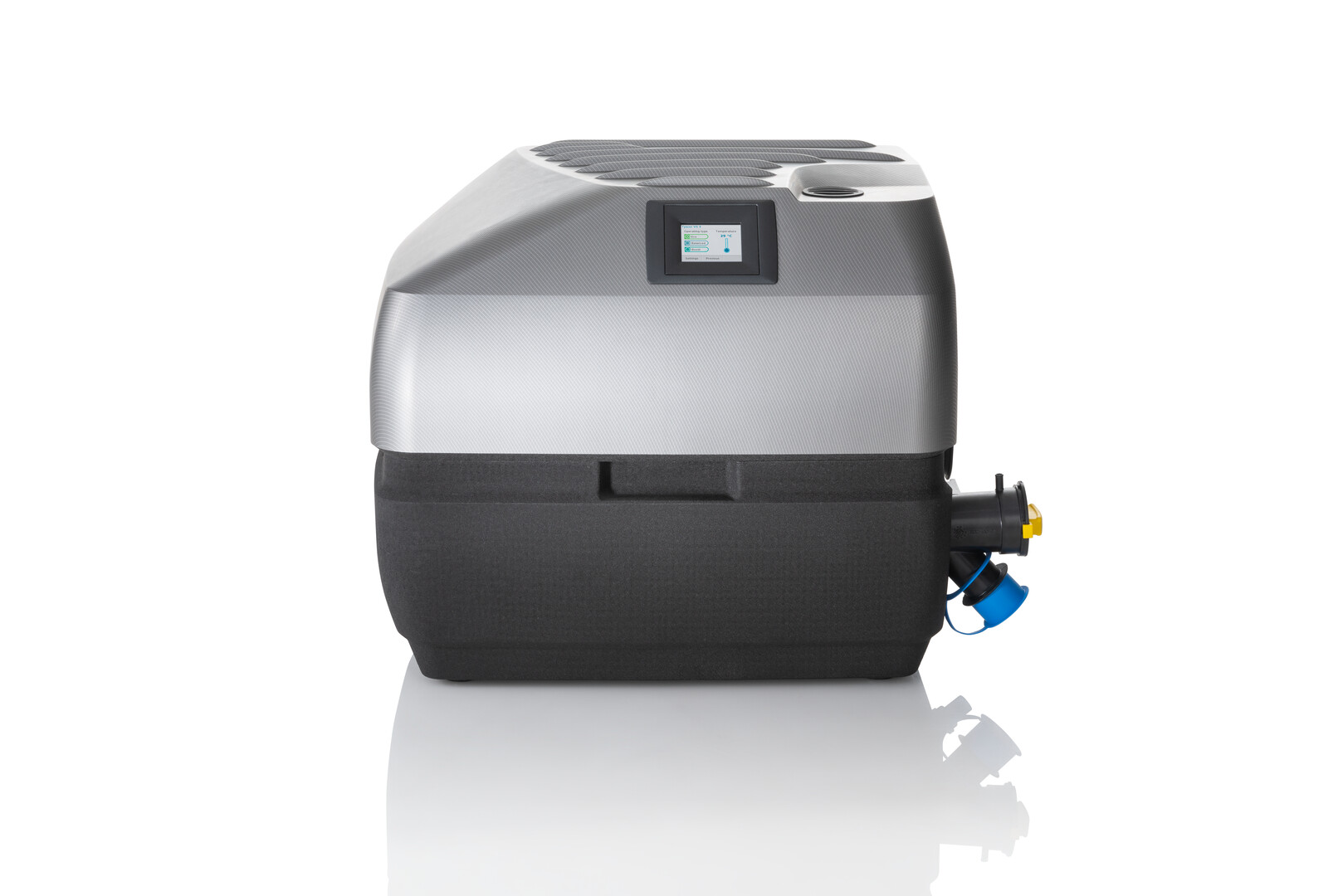

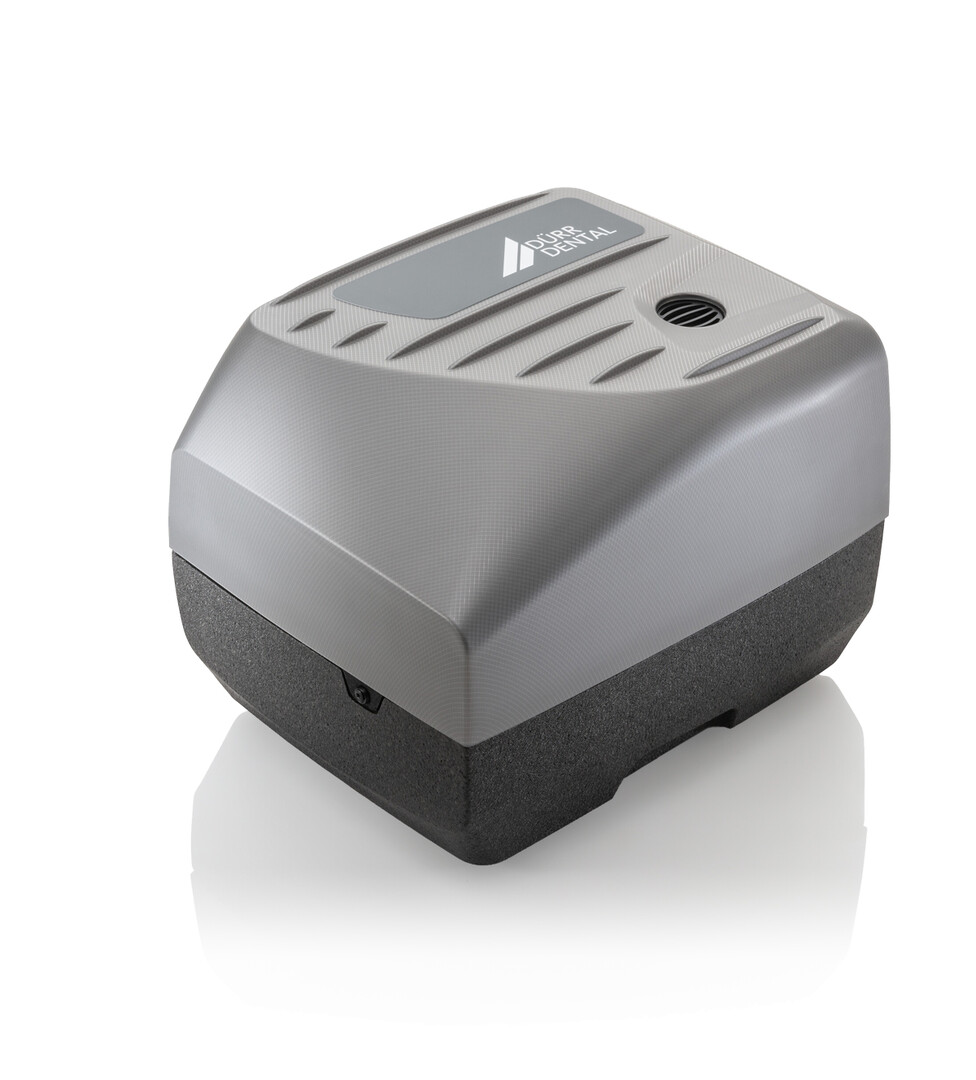

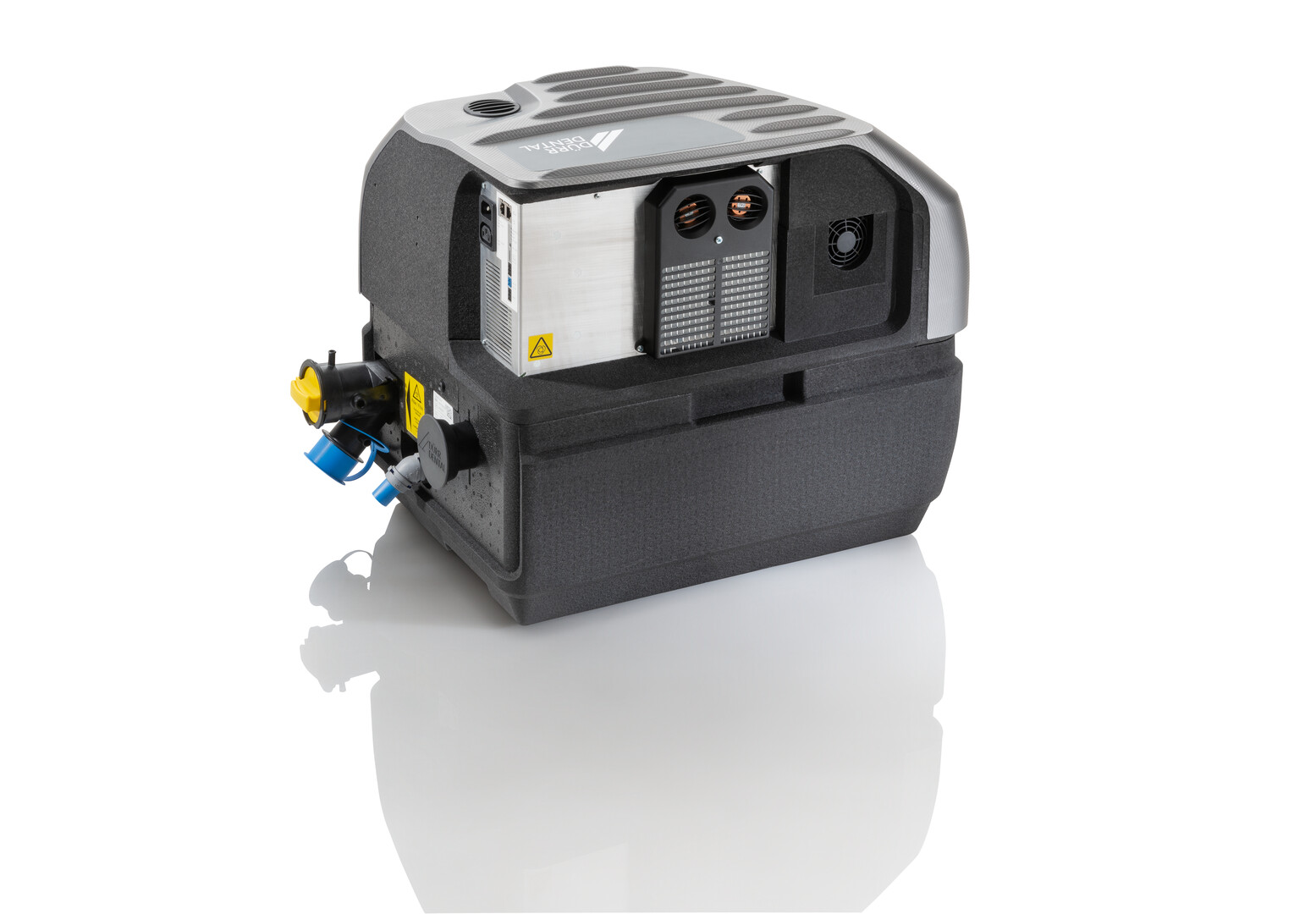

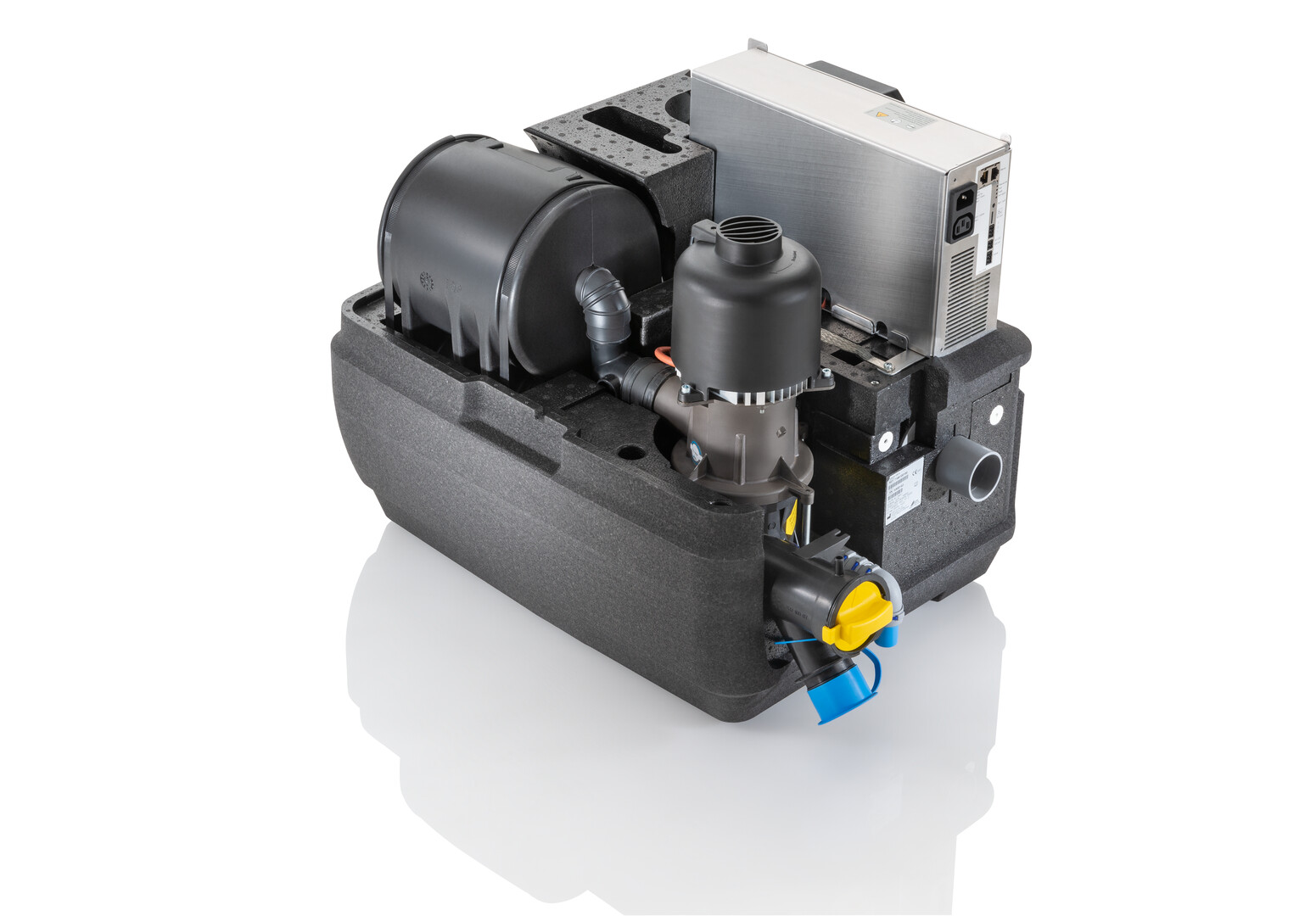

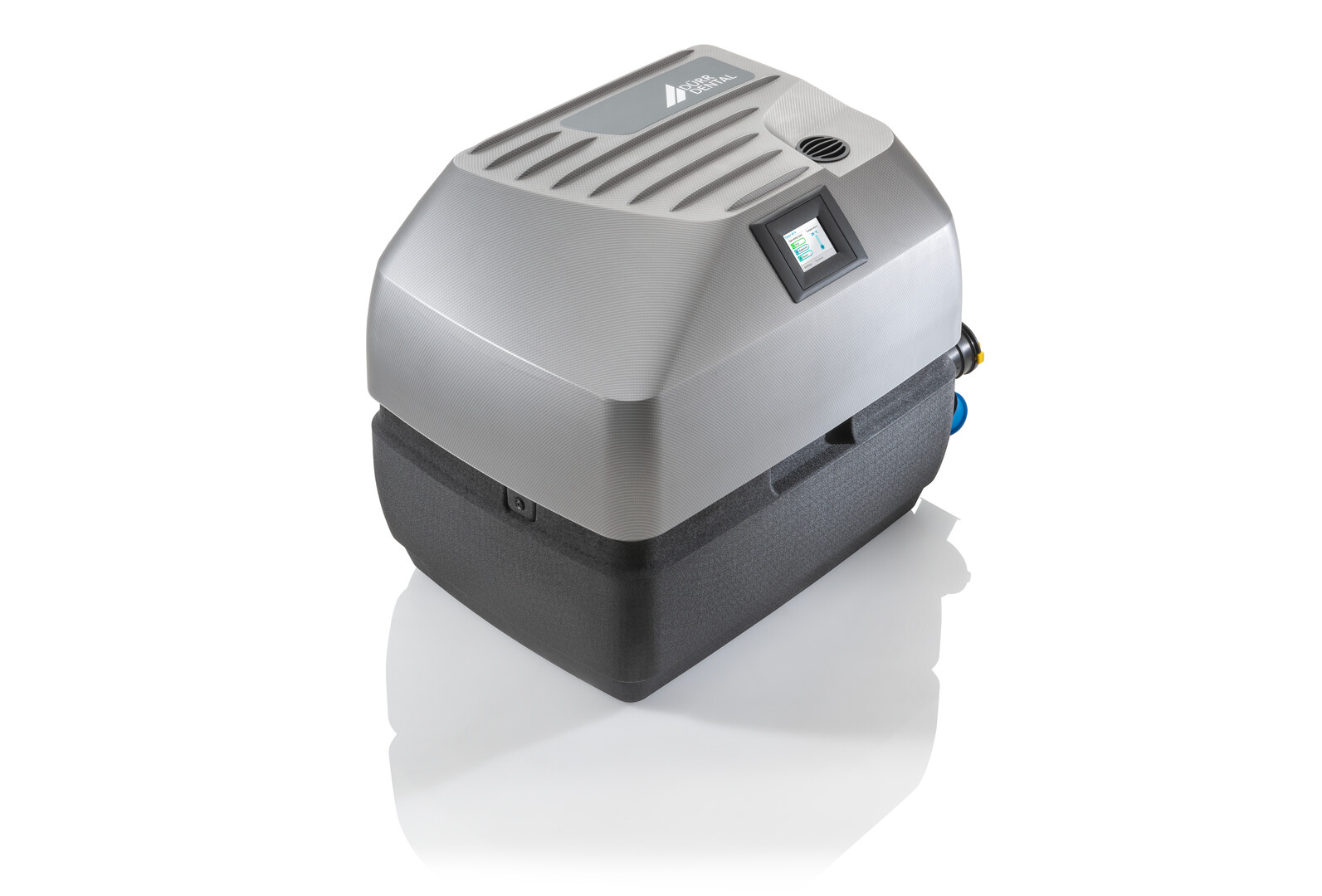

A DÜRR DENTAL Tyscor VS suction unit is a powerhouse you can rely on. It concentrates all of the suction and separation in the practice into a single, compact unit. It can effortlessly handle the amounts of liquids processed by up to four therapists at the same time. In the process, thanks to the integrated two-stage separation system, the aspiration of secretions and blood foam into the turbine space is reliably prevented. The reliable drive of the unit runs exceptionally quietly, and all important functional elements are protected against corrosion. Central installation in a multi-room practice places high demands on the cleaning and hygiene of the pipe network. With the flow accelerator developed by DÜRR DENTAL, the suction system automatically eliminates the risk of deposits, odours and hygiene problems.

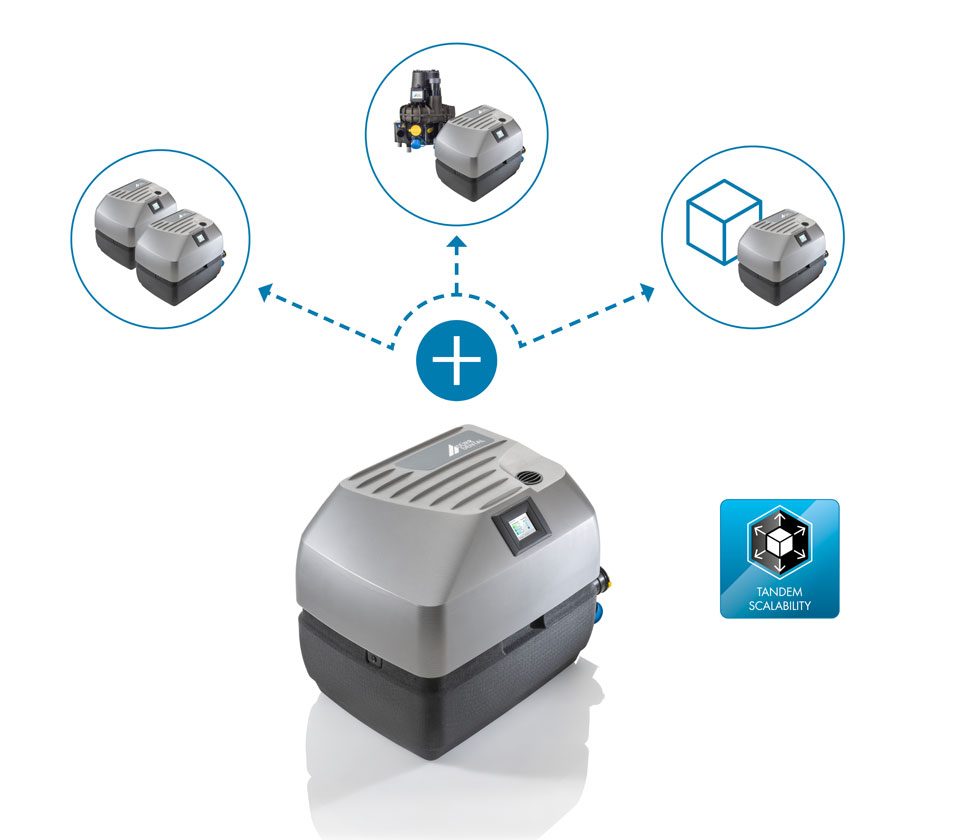

Tyscor Tandem Flex. Scalability at all levels
Upgrading existing devices instead of replacing them reduces investment costs and eliminates the need to install a second suction pipe to the suction unit. Automatic switching to the second device ensures uninterrupted treatment, even in stressful situations. Tandem operation ensures operational reliability for your practice – even in the event of a device failure. Tyscor Tandem Flex allows you to not only upgrade and expand Dürr Dental systems, but also works with equipment from other manufacturers

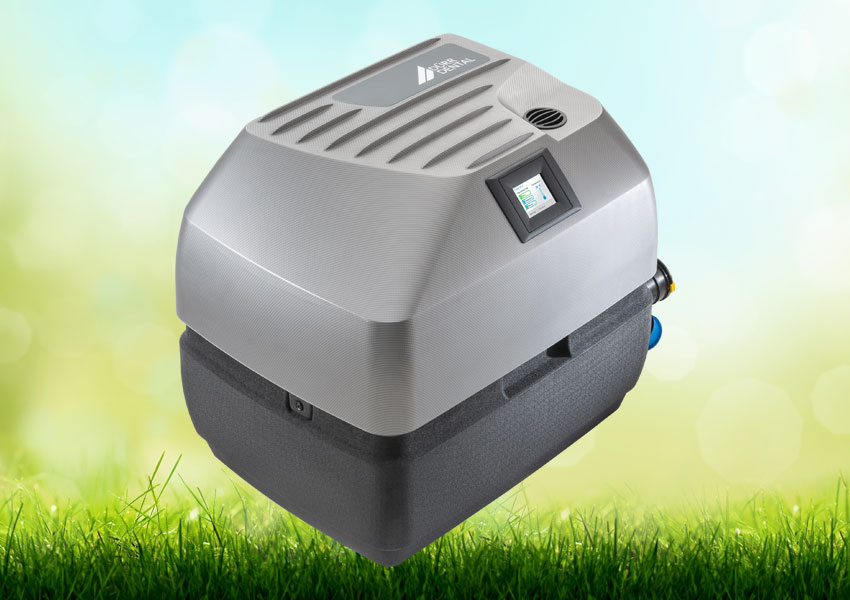

Sustainable right from the start
With their centrifugal technology, the new Tyscor suction systems set new standards in terms of performance and efficiency: latest measurements by the Fraunhofer Institute confirm up to 75% lower energy consumption compared to side channel blowers. An electronic control system offers new options for operational reliability, scalability and adaptation to individual practical conditions. We use recyclable materials in the production of the Tyscor series.
Energy saving
The radial technology of the Tyscor range delivers outstanding performance, particularly in terms of energy consumption. Its load-dependent automatic adjustment provides constant suction at all times – and saves money in the process.
Specifications
| Tyscor VS 1 Plus | Tyscor VS 2 | Tyscor VS 4 | |
| Voltage (V) | 230, 1~ | 230, 1~ | 230, 1~ |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Dimensions (H x W x D cm) | 32 x 35,5 x 45,5 | 32 x 35,5 x 45,5 | 51 x 45 x 69 |
| Noise level dB(A) | 53 | 55 | 61/64 |
| Max. vacuum (mbar) | 150 | 160 | 145 |

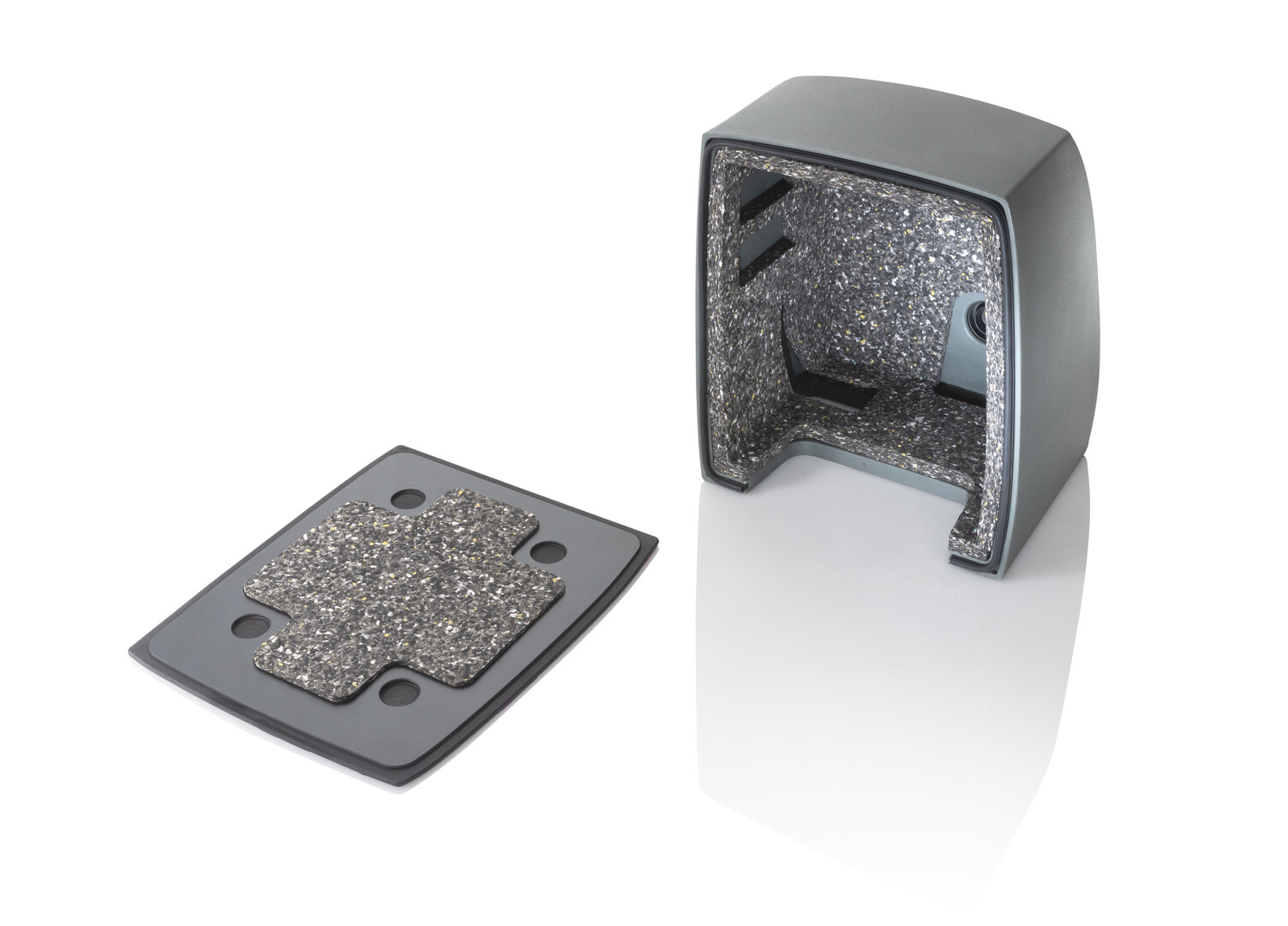

| Noise level with housing dB(A)1 | 48 | 50 | - |
| Weight (kg) | 11 | 11 | 24 |
| Max. flow rate with unimpeded flow (l/min) | 900 | 1200 | 2300 |
| Number of operators | 1 | 2 | 4 |
| Dimensions with condensation separator (H x W x D cm) | - | - | - |
| Max. electrical output (kW) | - | - | - |
| Current consumption (A) | - | - | - |
| Weight (kg) | - | - | - |
