The Adanced 4- in – 1 Digital X-Ray Imaging System
Green X
The Adanced 4- in – 1 Digital X-Ray Imaging System

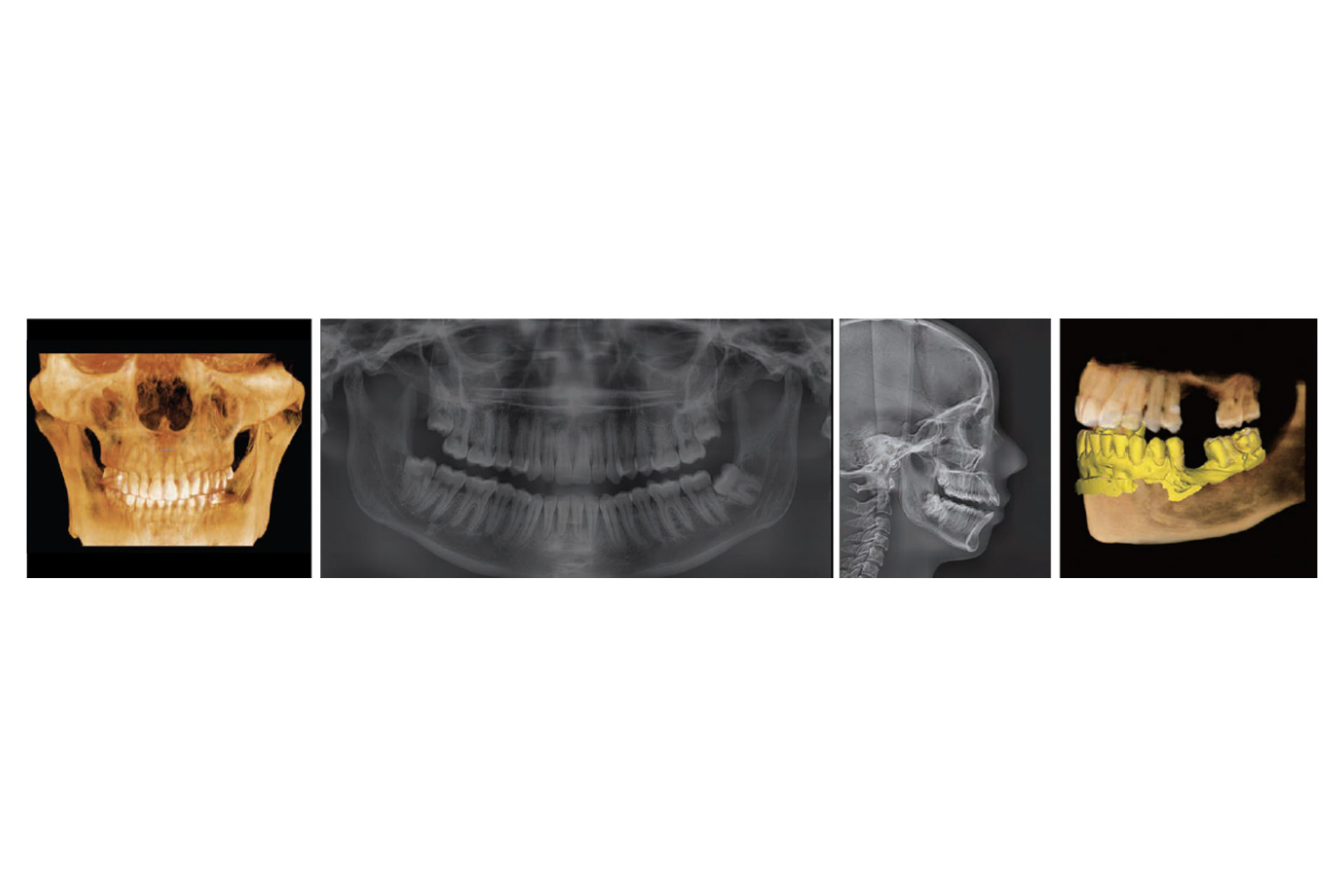

Green X is an advanced 4-in-1 digital x-ray imaging system that incorporates Pano, Ceph (optional), CBCT, and Model Scan. With Vatech’s extensive experience in the dental imaging field, the Green X provides high-quality images with lower radiation by combining image processing. This will improve your diagnostic accuracy and lead to increased treatment planning and patient satisfaction.

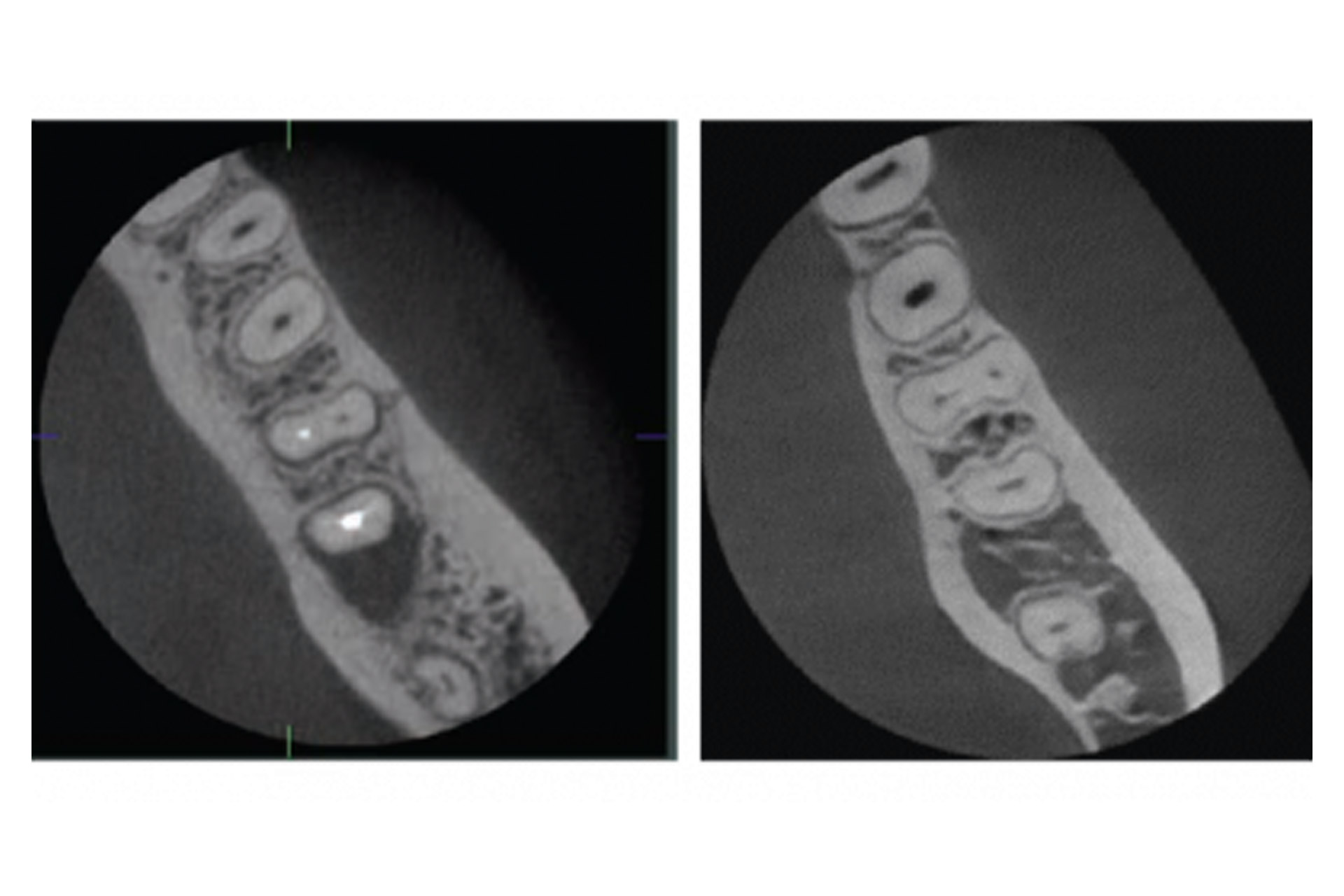

Endo Mode With High Resolution
With its 4cm x 4cm volume mode and 49.5 micron voxel size, the Endo mode will optimize treatment of highly-focused regions of interest. It is ideal for endodontic use because the dentist is able to achieve an extraordinary image in a high-resolution voxel size.

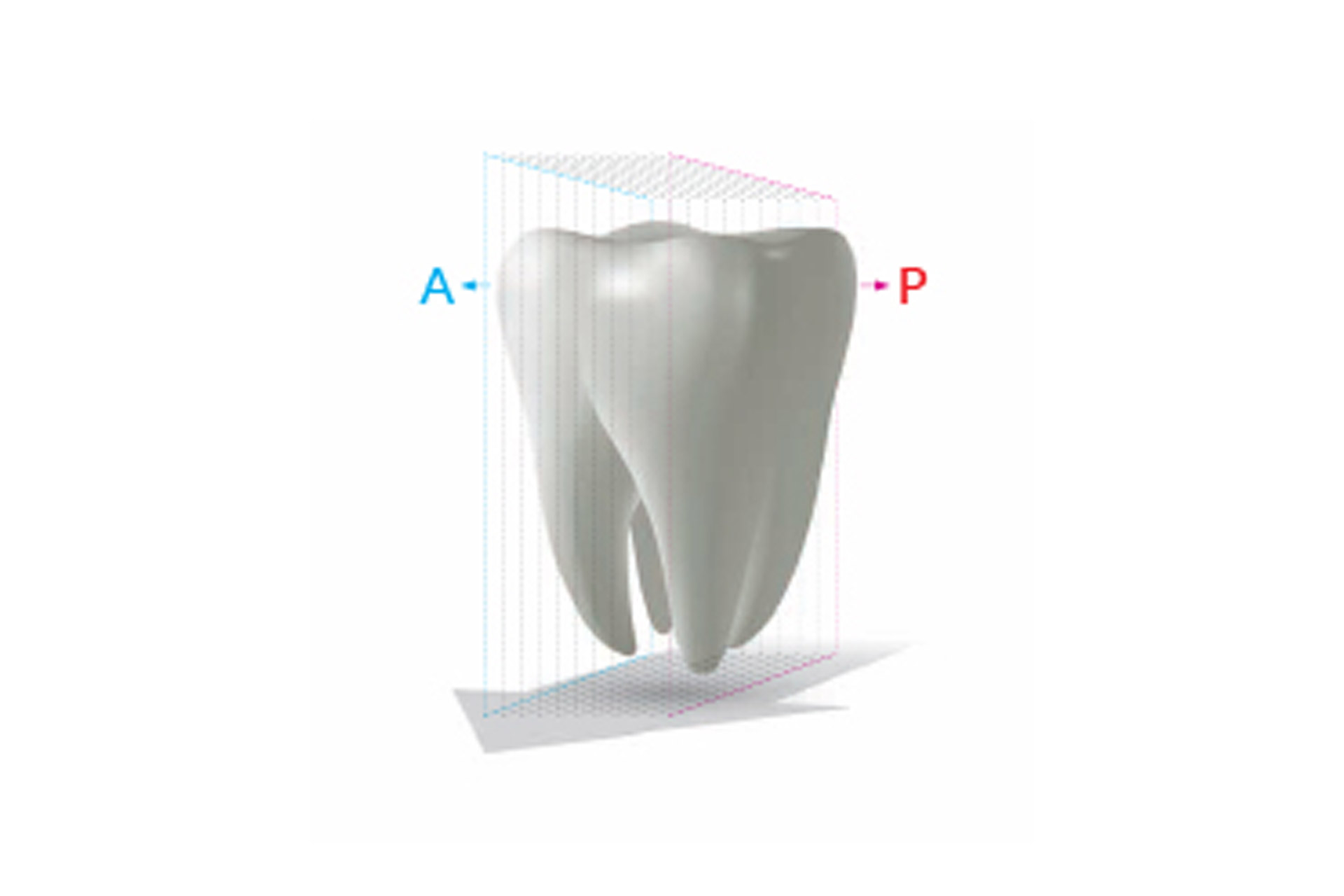

Insight 2.0

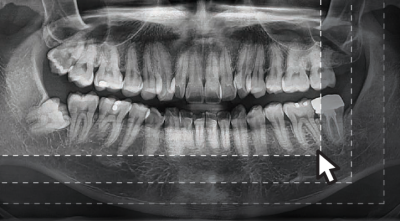

The Insight Pan is capable of taking a multilayered panoramic image, called an Insight Pan, which provides a unique in-depth look across a single focal trough. Insight 2.0 has an upgraded free FOV feature so you will be able to capture just the area of interest.
Specifications [Green X]
| Function | CT + Pano + Ceph + Model Scan | |
|---|---|---|
| Focal Spot Size | 0.5 mm (IEC 60336) | |
| CT FOV Size | 16×9 cm: 4×4, 5×5, 8×5, 8×8, 12×9, 16×9 cm | |
| Voxel Size (mm) | 4×4 | 0.05 mm |
| 5×5 | 0.08 mm / 0.12 mm | |
| 8×5 / 8×8 | 0.12 mm / 0.2 mm | |
| 12×9 / 16×9 | 0.2 mm / 0.3 mm | |
| Scan Time (sec) | Pano | 4.0 sec / 14.1 sec |
| Ceph | 1.9 sec / 4.9 sec | |
| CBCT | 2.9 sec / 9.0 sec | |
| Gray Scale | 14 Bit | |
| Tube Voltage / Current | 60 – 99 kVp / 4 – 16 mA | |
| Weight | Without CEPH unit | 162.9 kg (359.13 lbs – without Base) |
| 217.9kg (480.38 lbs – with Base) | ||
| With CEPH unit | 187.9 kg (414.25 lbs – without Base) | |
| 242.9 kg (535.5 lbs – with Base) | ||
| Dimensions | Without CEPH unit | 1905.5 mm (L) x 1374.9 mm (W) x 2315.4 mm (H) – without Base |
| 1905.5 mm (L) x 1374.9 mm (W) x 2345.4 mm (H) – with Base | ||
| With CEPH unit | 1085.0 mm (L) x 1343.5 mm (W) x 2315.4 mm (H) – without Base | |
| 1085.0 mm (L) x 1343.5 mm (W) x 2345.4 mm (H) – with Base | ||

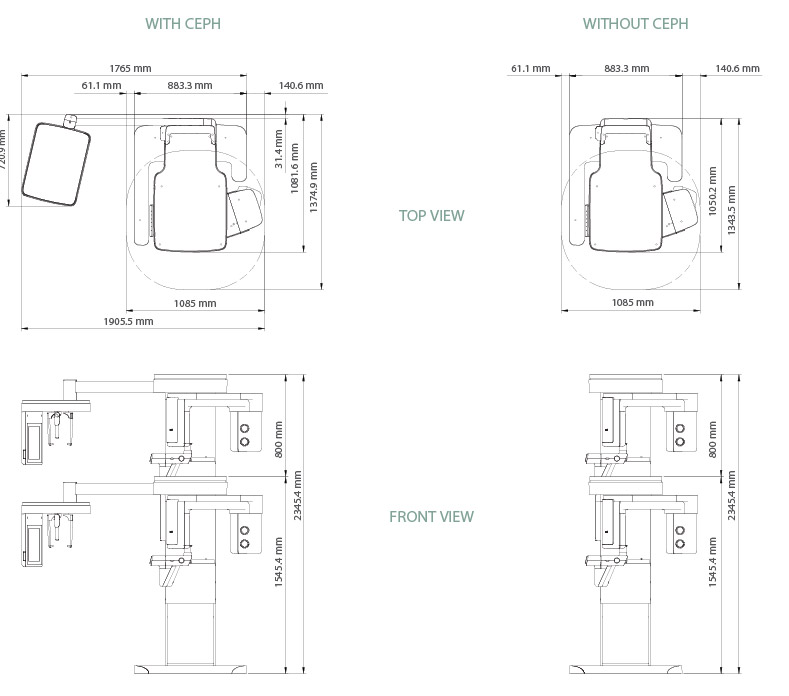

Dimensions

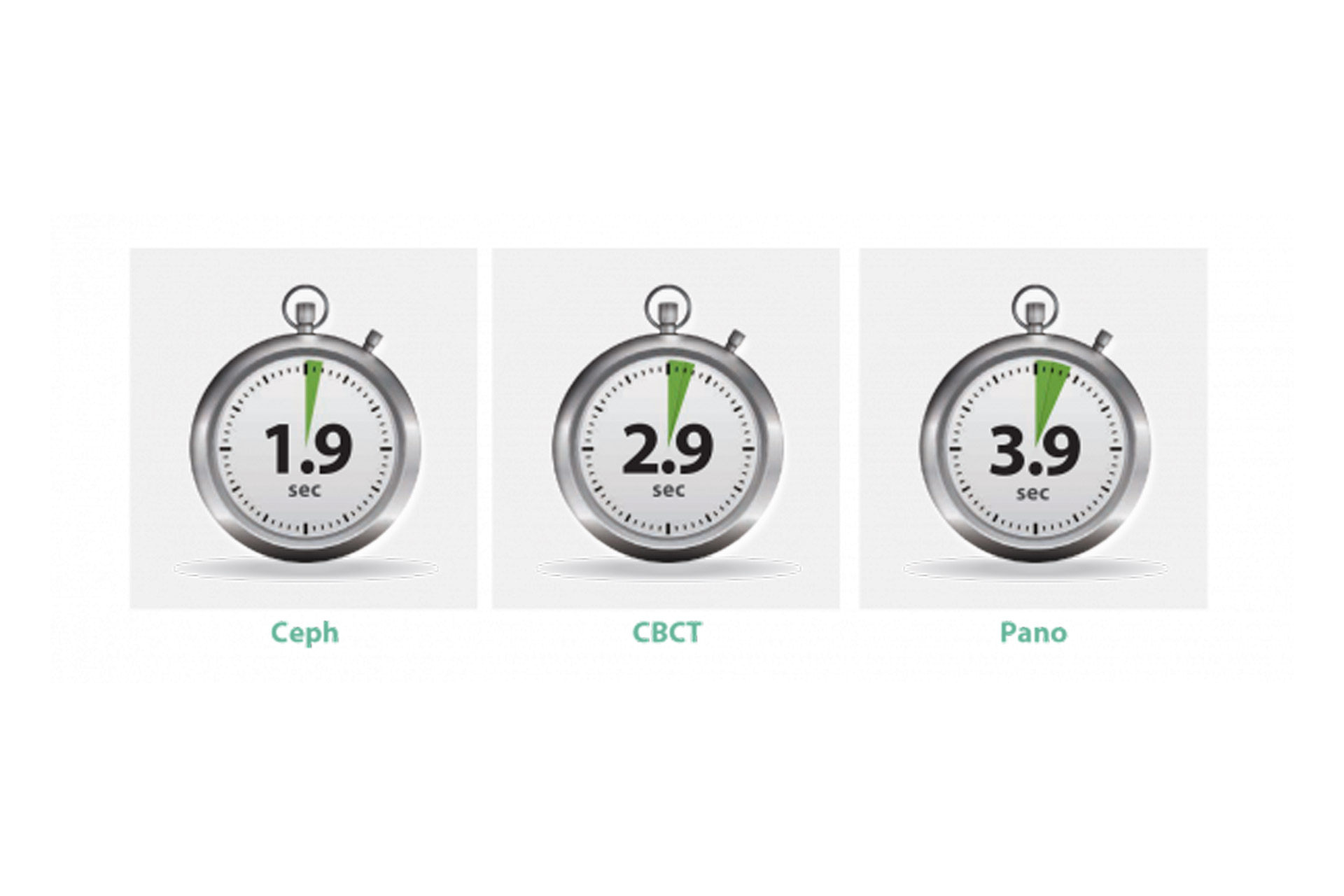

Green Scan Time
Due to its scan time, the Green X minimizes motion artifact and enables faster work ow. It produces superb diagnostic images, which will be a source of pride for any dental practice. Focusing on the highest quality of patient care, Vatech strives to improve the health and safety of your patients.
