Easy Diagnosis And Great Experience

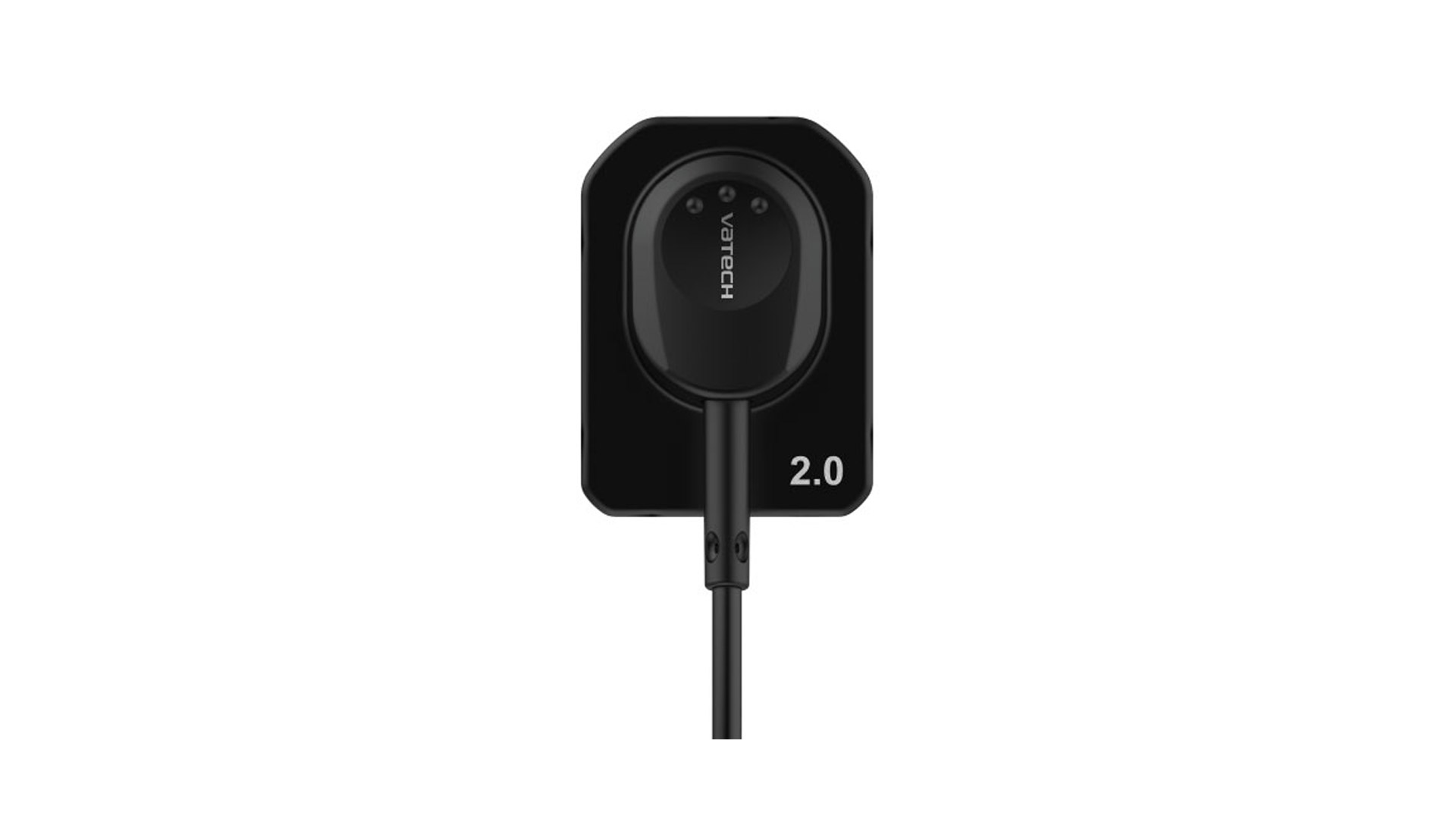

EzSensor Classic

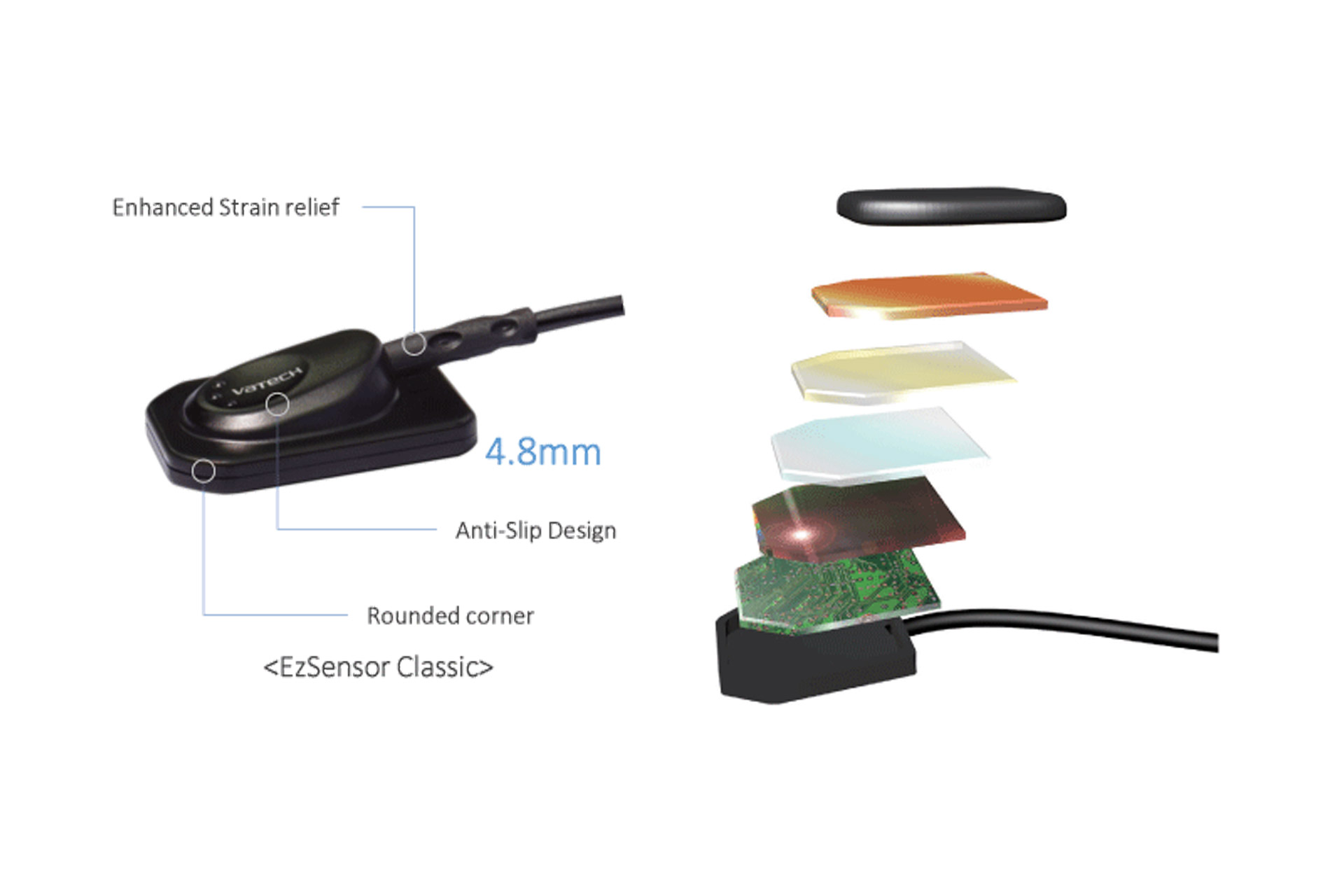

Slim Design For Easier Positioning
Patients will experience ‘optimized touch’ from the thinnest sensor.
Slim and rounded edges ensure that patients feel as comfortable as possible while taking X ray images.
VATECH R&D Center tested the thickness which minimizes the most pain, and led in technology while using a CMOS chip.

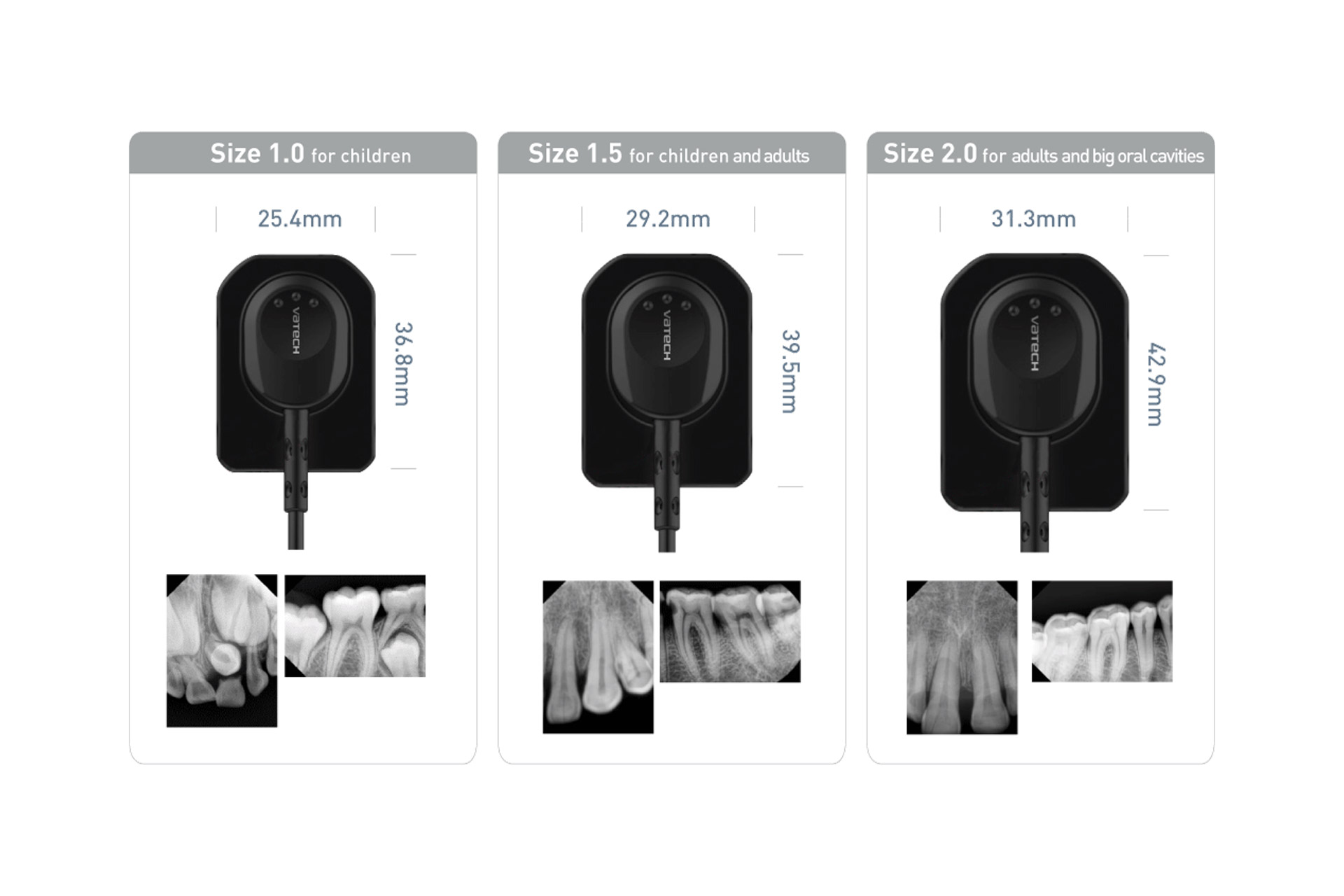

Ergonomically Designded In 3 Different Sizes
Even more, Vatech’s unique size 1.5 fits almost all patients.

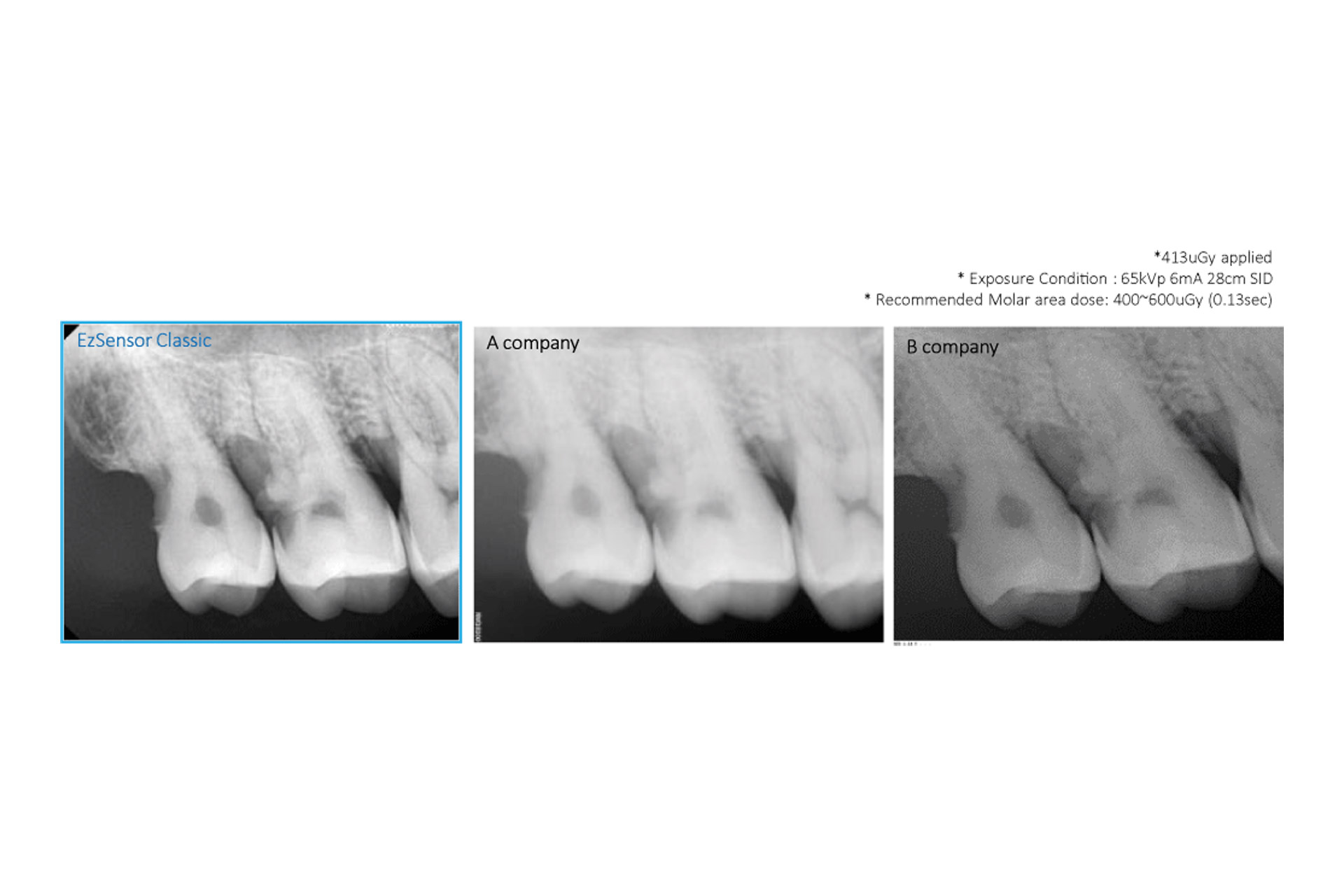

Leading Expert In Image Quality
8×8 images enable fundamental diagnoses and treatment planning, including both the maxillary and mandibular areas, in a single scan. It is useful for complex implant surgeries and left/right TMJ diagnoses.
Specifications
| Function | CMOS |
|---|---|
| Pixel Size29.6 μm | 29.6 μm |
| Theoretical Resolution | 17 lp/mm |
| Dynamic Range | 12 bit |
| Active Area(WxL) | Size 1.0 _ 20 x 30 mm Size 1.5 _ 24 x 33 mm Size 2.0 _ 26 x 36 mm |
| Dimensions(WxLxT) | Size 1.0 _ 25.4 x 36.8mm (1.00 x 1.45 inch) Size 1.5 _ 29.2 x 39.5mm (1.14 x 1.55 inch) Size 2.0 _ 31.3 x 42.9mm (1.23 x 1.69 inch) |
| Thickness | 4.8 mm(0.19 inch) |
| Cable Length | 2.7 m |

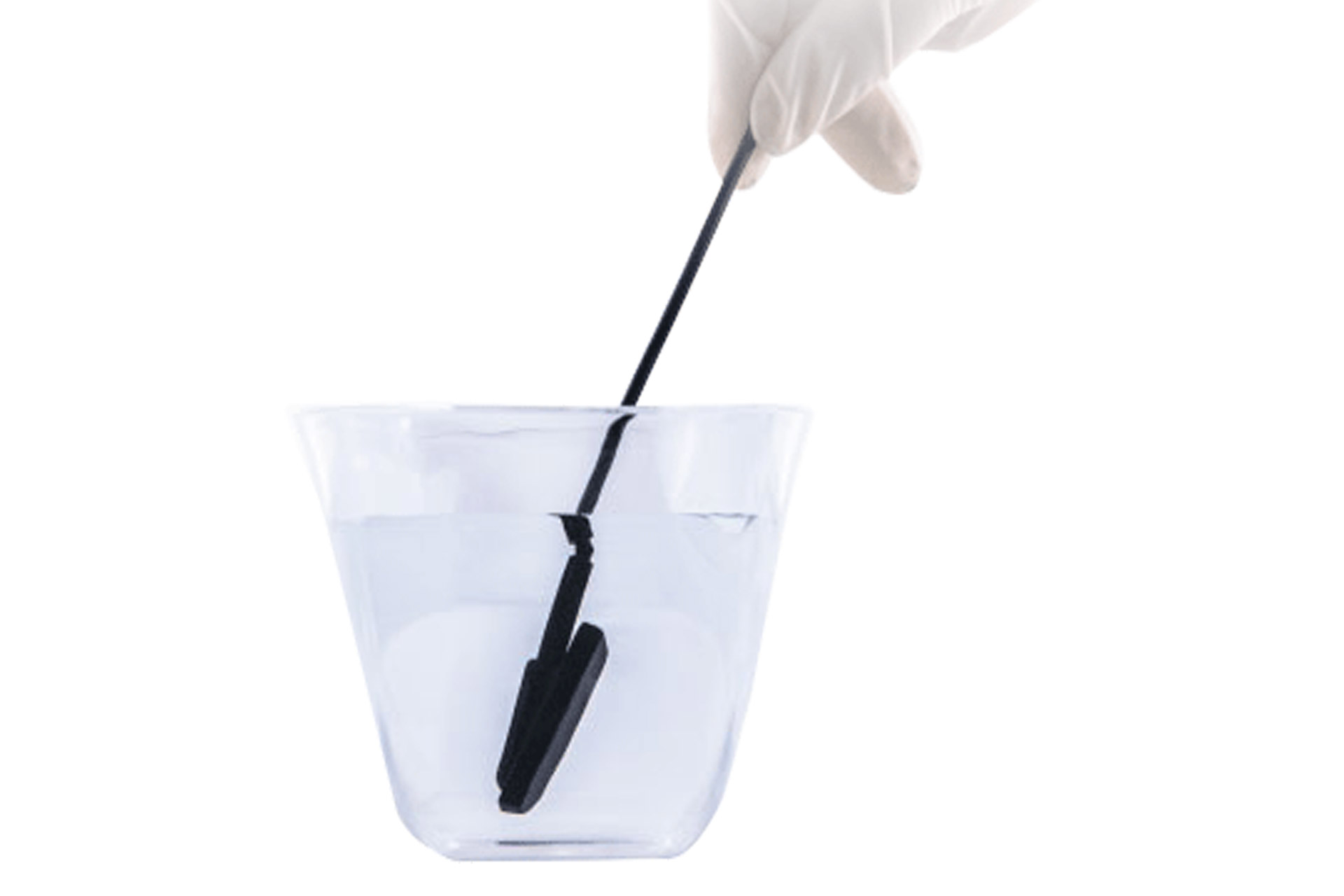

Innovation In Durability
EzSensor Classic is rated at IP68, the highest level of the Ingress Protection [IP], which proves that it has complete protection against dust and pressure caused by long periods of immersion.
