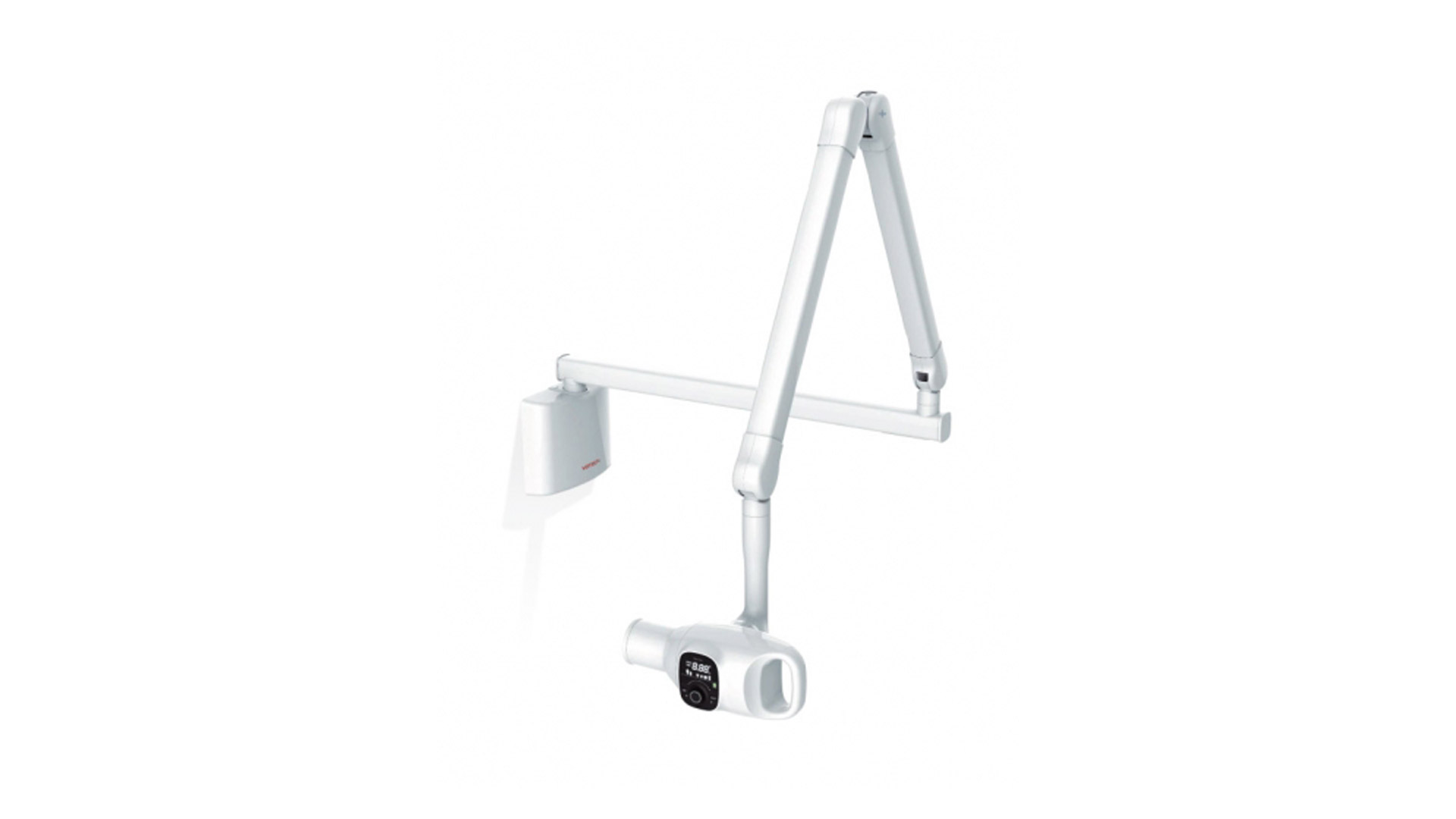

WALL-MOUNTED INTRAORAL X-RAY
Ez Ray Air wall

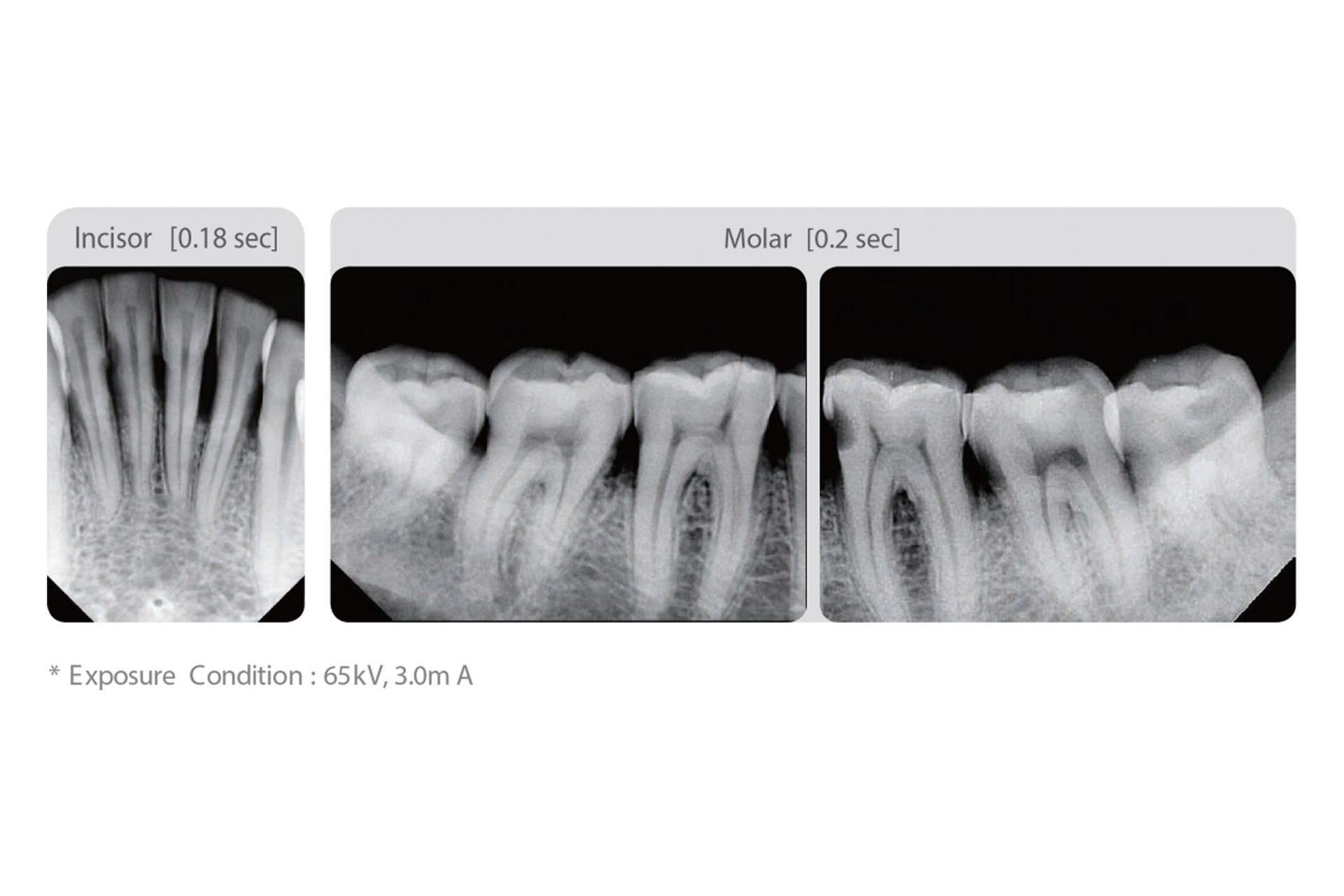

Secure Clear Images With A 0.4mm Focal Spot
Regardless of which intraoral sensor you use, the EzRay Air minimizes blur and provides additional diagnostic value with a 0.4mm focal spot.

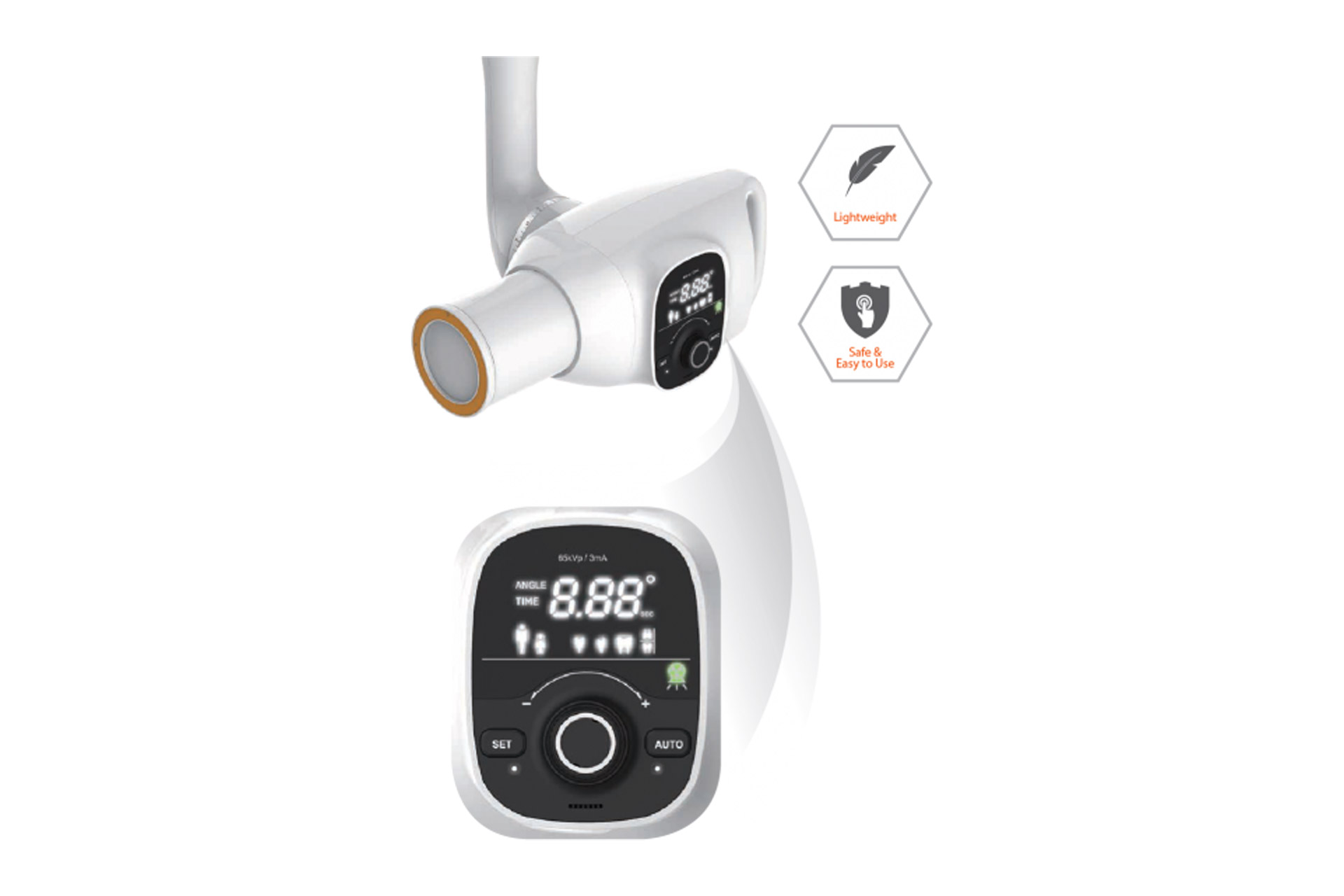

Smart Dial for All Functions
The operating panel located on the tube head creates a much simpler and much faster workflow. Using the smart dial, practitioners will notice a decrease in preparation time and less of a need to remember complicated control buttons and configurations.

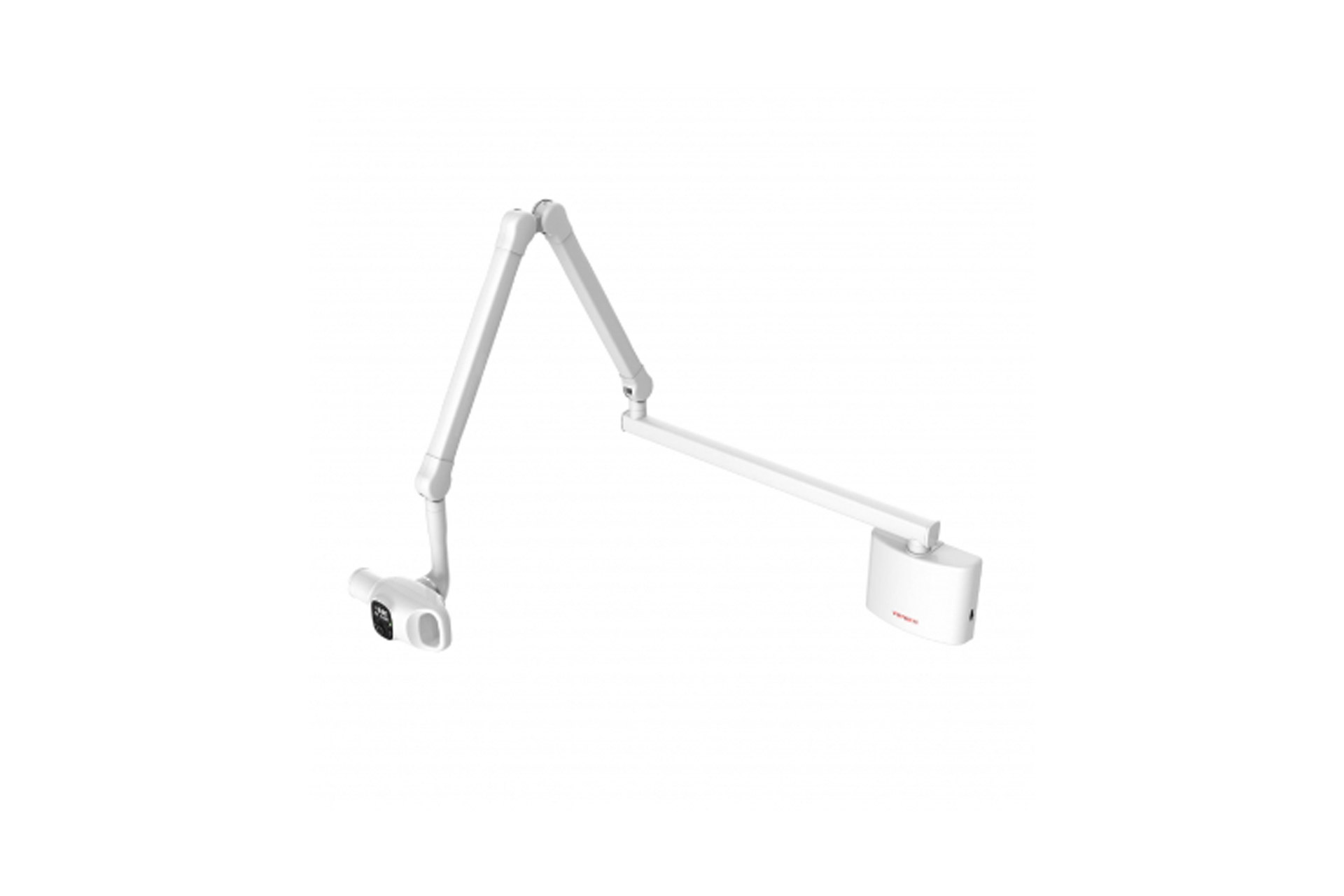

Weight Innovation With Cnt Carbon Nano Technology
The wall mounted EzRay Air Wall is a lightweight x-ray device designed for easy handling and stable positioning for optimal image quality on your intraoral x-rays. The EzRay Air Wall’s lightweight tube head provides users with a stable and easy to use x-ray source which maximises image clarity and optimises workflow.
Specifications (Ezray Air Wall : Vex-S300w)
| Focal Spot | 0.4 mm (IEC 60336) |
|---|---|
| Tube Voltage | 65 kV |
| Tube Current | 3.0 mA |
| Exposure Time Range | 0.05 ~ 0.5 (0.01s increment) |
| Source to Skin Distance | Min. 7.9 inch |
| X-ray Field | Default: : 60 mm Round, 30×40 mm Rectangular / Optional: 20×30 mm Rectangular |
| Arm Length [Option] | 62”/ 68”/ 80” *See note A |

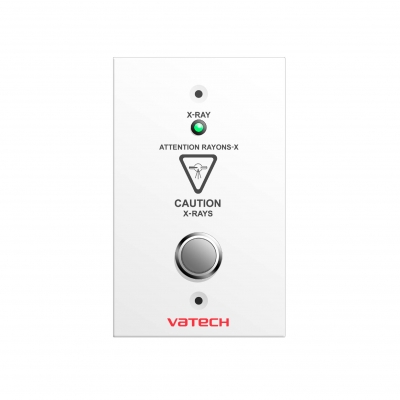

| Accessories | Remote Exposure Switch (Hand Switch / Doorbell Switch) |
| Weight | 56.9 Ib (Arm Length 62″) |
| 58.0 Ib (Arm Length 68″) | |
| 61.1 Ib (Arm Length 80″) |

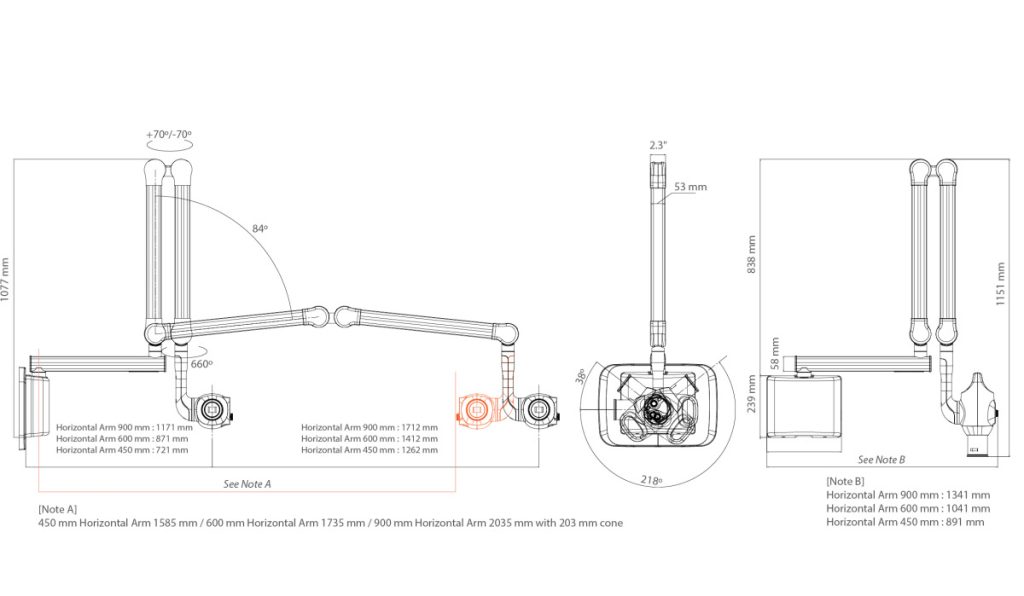

Dimensions [Unit : mm]

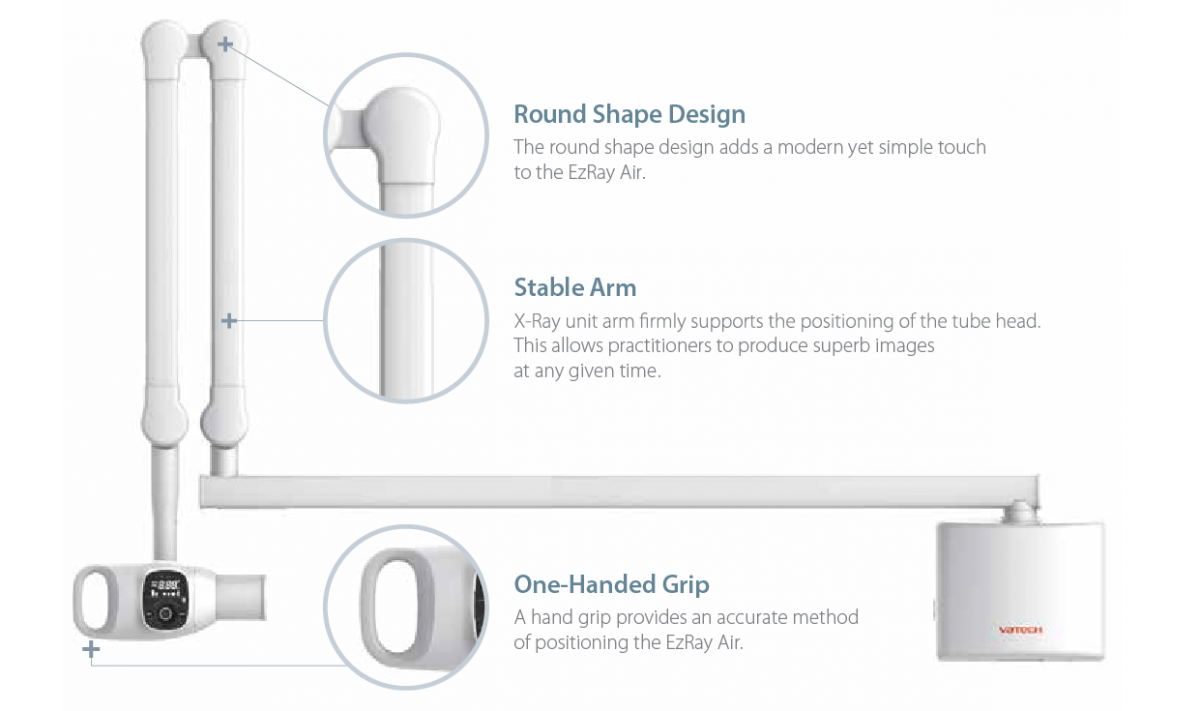

Ergonomic Design
