In contrast to conventional dental suction systems, where the other main task alongside the removal of saliva and secretion is to extract the contaminated spray mist (aerosol) from the treatment area, different requirements are placed on the suction unit in oral and maxillofacial surgery. Pinpoint-accurate removal of larger amounts of blood, tissue, dentine and bone residue with the surgical cannula demands a high negative pressure and a powerful pump.
Plant System
Surgical suction units from DÜRR DENTAL
Ideal for use in oral and maxillofacial surgery and implantology
Powerful and quiet
During surgery, you can concentrate fully on your patients. Treatment teams can rely on operating systems that run smoothly. Our units restore peace and quiet again at last during treatments. The quiet way this unit delivers its powerful performance has a calming effect on patients and makes it easier for the team to concentrate on the actual task in hand.
Surgical suction cannulas
Slim cannulas for surgical procedures with a special shape that still makes them suitable for large amounts of blood.

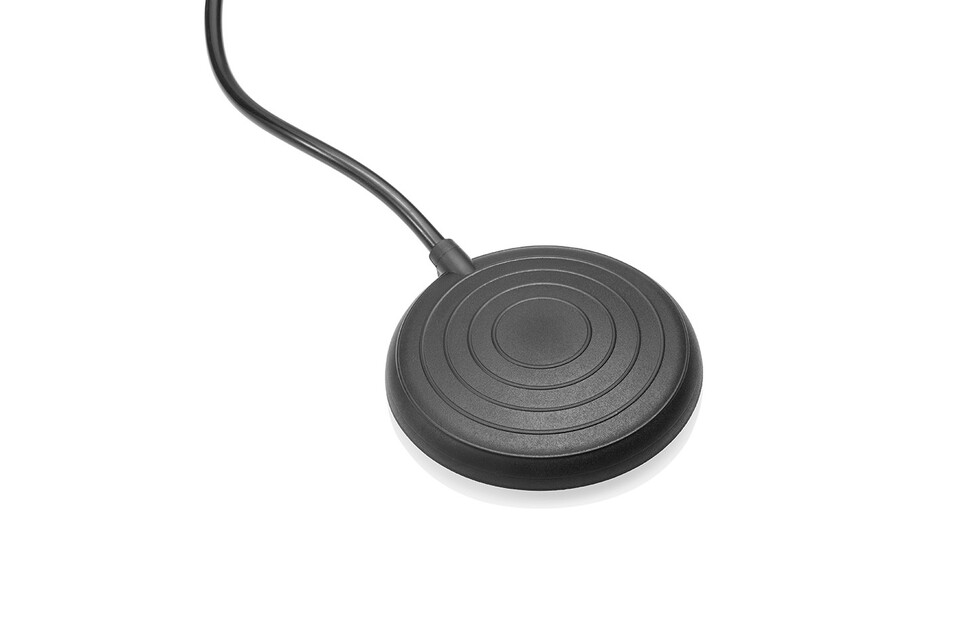

Flexible working thanks to foot switch
The VC 65 is also available with a foot switch which enables the unit to be flexibly switched on and off.

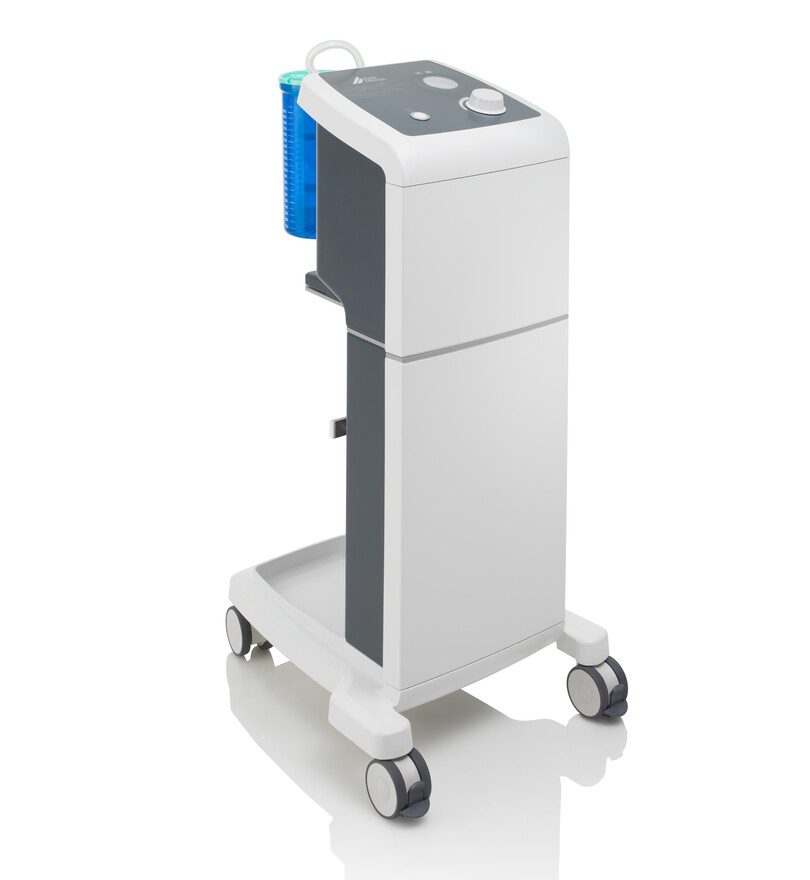

With optional cart
An optional cart with storage space is available for mobile operation of the VC 65.

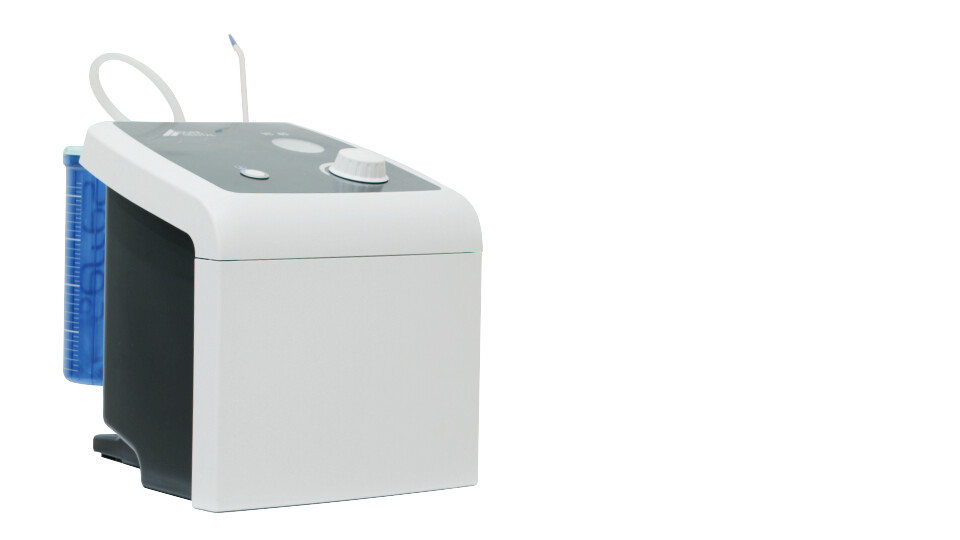

VC 65

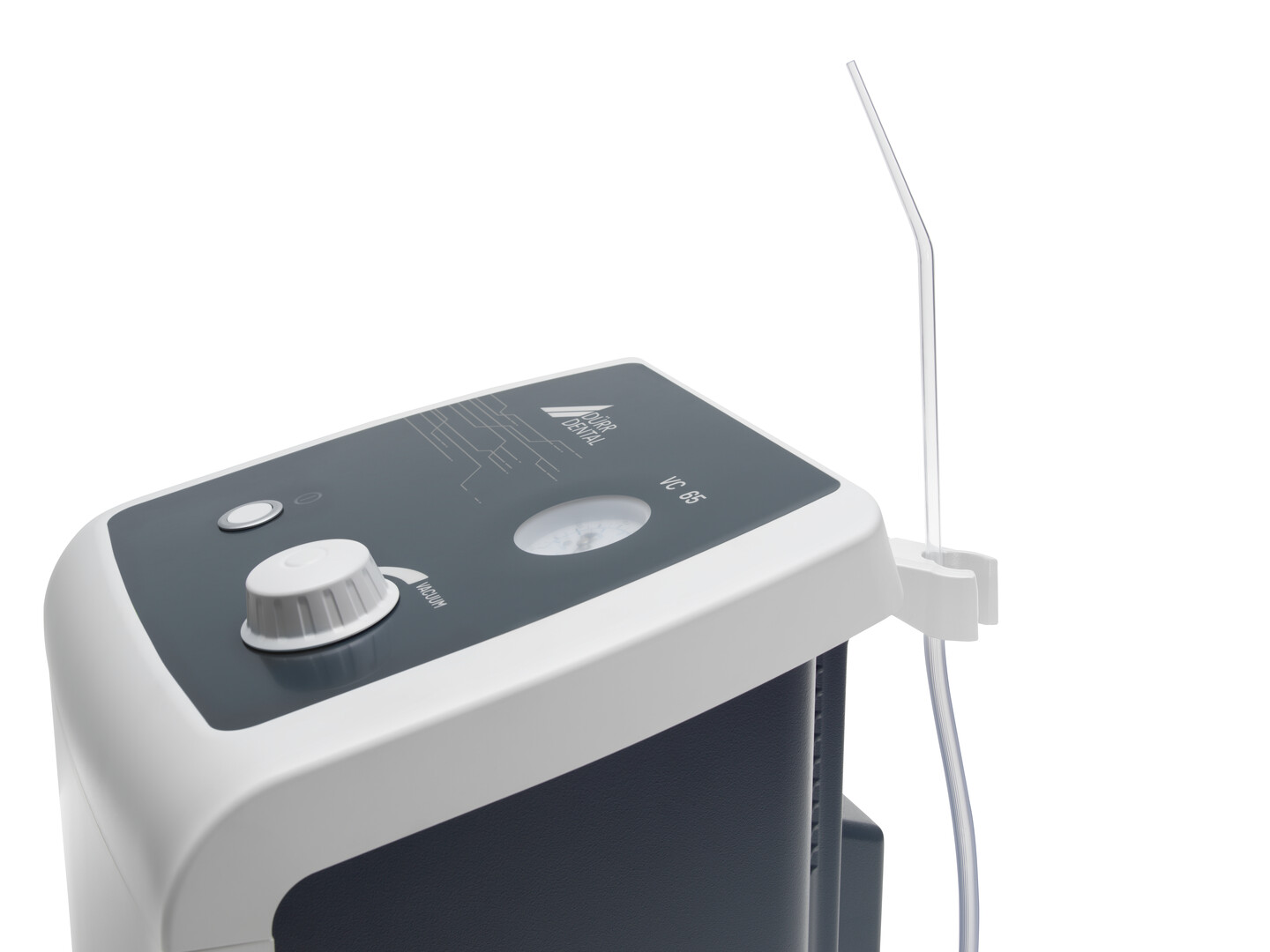

VC 65 surgical suction unit
With a suction volume of 65 l/min and a consistently high negative pressure of up to 910 mbar the new continuously variable surgical suction unit enables precise working with maximum performance for surgical applications.
Specifications
| VC 65 surgical suction unit | VC 45 surgical suction unit | |
| Voltage (V) | 230 | 230 |
| Max. volume flow (l/min) | 65/75 | 45 |
| Noise level dB(A)1 | 44 | 48 |
| Frequency (Hz) | 50/60 | 50/60 |
| Current consumption (A) | 0,8 | 0,75 |
| Max. vacuum (mbar) | 910 | 910 |
| Dimensions (H x W x D cm) | 35 x 33 x 37 | 33 x 24 x 36 |
| Dimensions with cart (H x W x D cm) | 105 x 45 x 57 | 101 x 36 x 44 |
| Weight (kg) | 16 | 6,7 |
| Weight with cart (kg) | 27 | 12,5 |
1: Delivery with drying unit
2: An optional pressure reducer is available
Plant System
High-performance intraoral suction – reliable at 300 l/min
Variosuc – mobile and flexible spray mist suction system
Depending on the practice requirements or the area of application, adequate protection against infection must be ensured, particularly by means of highly efficient suction of germ-laden aerosol. In addition, our devices are certified as Class IIa medical devices in accordance with the MDR (EU 2017/745). They therefore fulfil all regulatory requirements and offer you security. With the Variosuc mobile suction unit, DÜRR DENTAL offers a mobile and flexible spray mist suction system that is ready to use straight away anywhere in your dental practice – with no need for prior installation. Simply plug in and get started! This means that even if conditions are challenging you can still rely on the benefits of a highly efficient suction system from DÜRR DENTAL. If it is difficult to install a fixed suction system in your dental practice then the Variosuc can also be permanently used as a stationary solution, e.g. in the prophylaxis room.
A suction volume of 300 l/min is mandatory
Without this kind of suction system, the cooling spray from fast-running and ultrasonic instruments can cause an aerosol cloud to spread throughout the entire treatment room. Thanks to suction systems with a suction performance of around 300 l/min, the resulting risk of infection is efficiently reduced. According to a study (source: Tillner, 2016), suction with a powerful spray mist suction system is the only effective way to reduce aerosols.

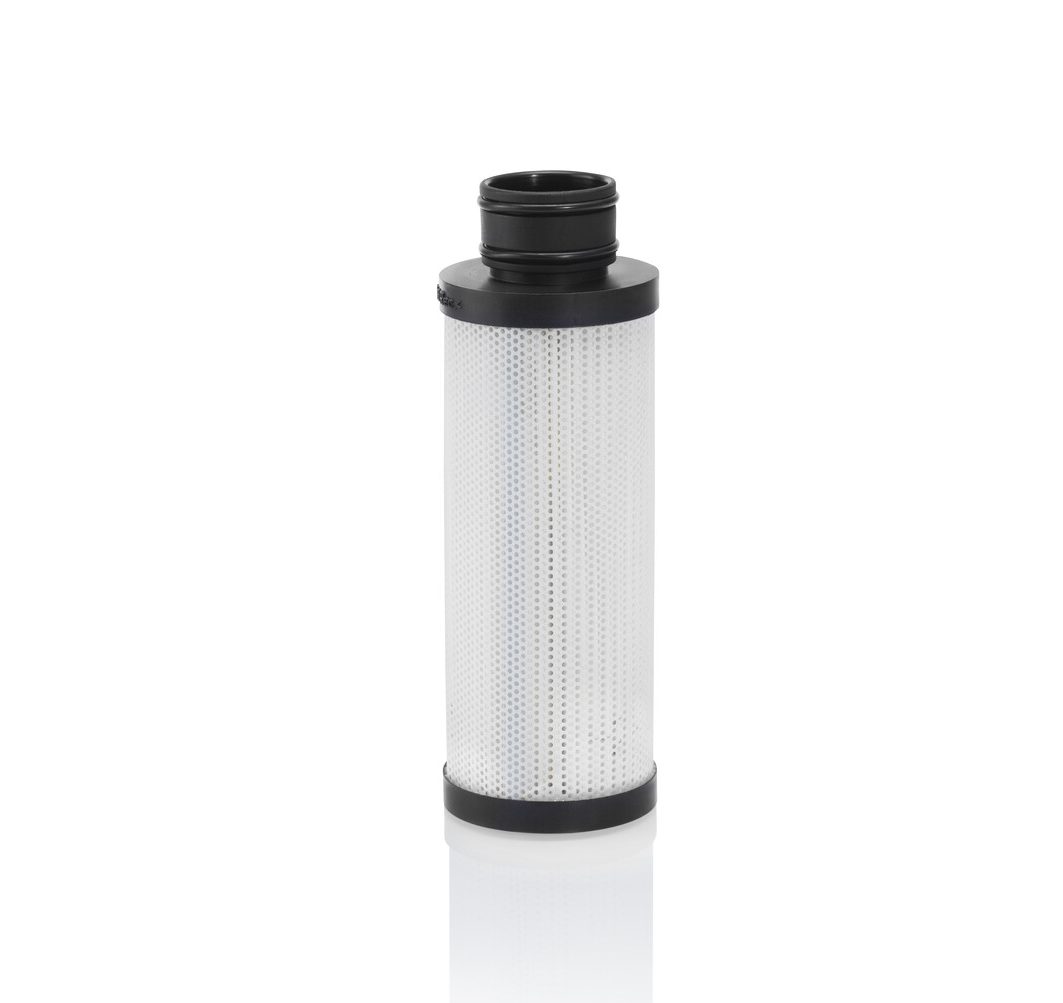

Integrated exhaust air virus-bacteria filter
For hygienic reasons, we recommend the installation of a bacteria filter in the exhaust air line of the suction system. The Variosuc has a bacteria filter fitted as standard for all-round hygienic suction.

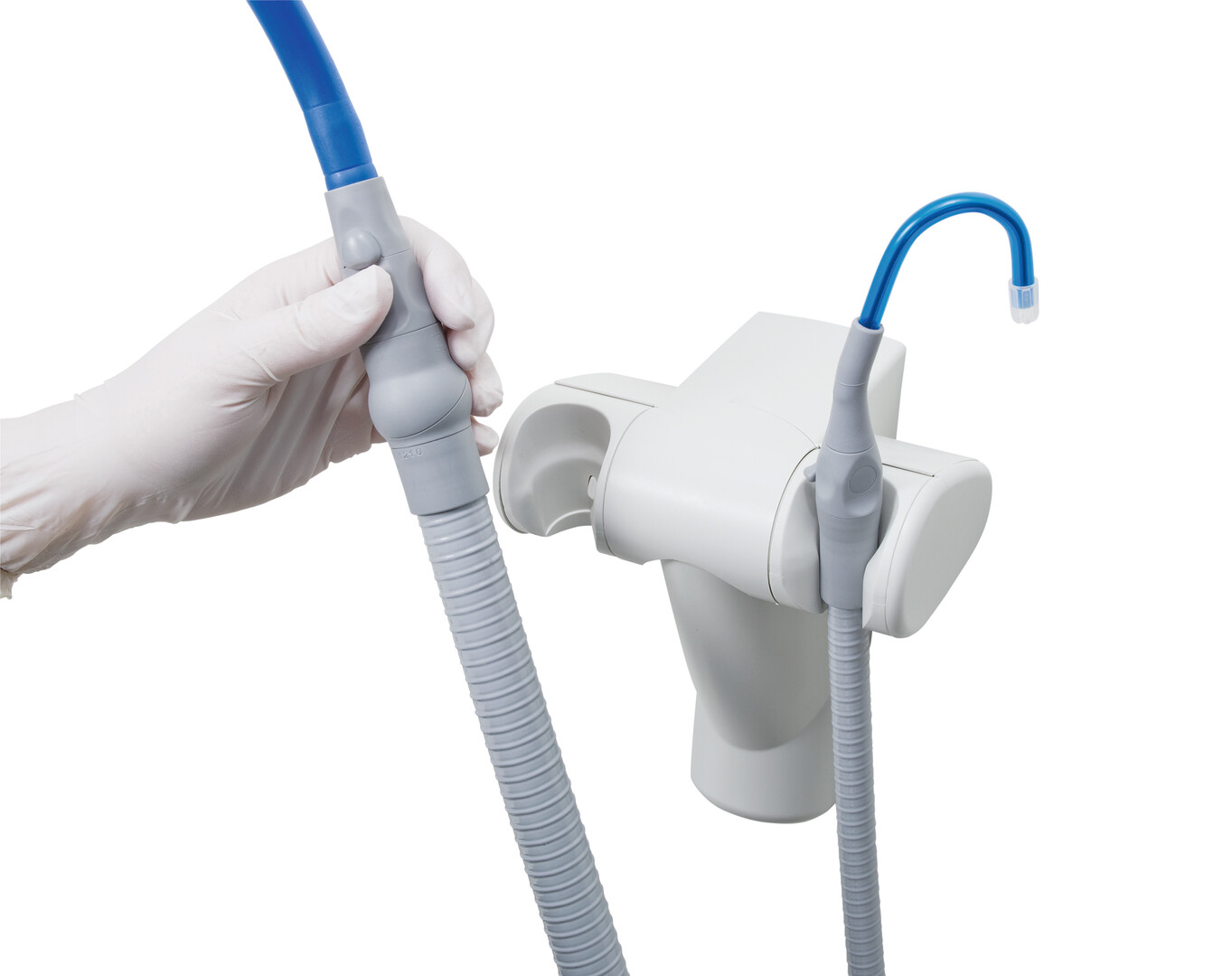

Comfort manifolds
Hose manifolds in dental practices are equipped with various components depending on the treatment focus, personal suction technique and handling. Due to its modular design, the DÜRR DENTAL Comfort hose manifold can be extended individually and is configured for up to five different components.

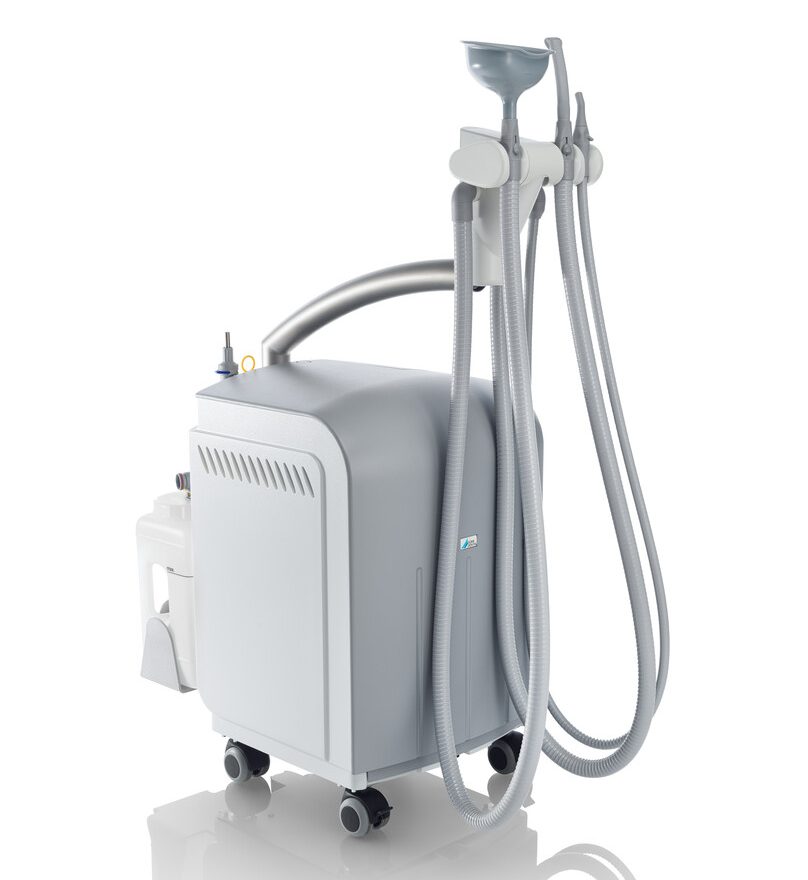

Variosuc VS
Variosuc VS
The Variosuc is based on the established DÜRR DENTAL VS technology with separation and vacuum generation on a single shaft.
Variosuc VSA
Variosuc VSA
The mobile Variosuc VSA variant combines vacuum generation and separation in a single compact unit.
Specifications
| Variosuc VS | Variosuc VSA | |
| Noise level dB(A) | ~54 | 50 |
| Dimensions (H x W x D cm) | 90 x 36,5 x 64 | 90 x 36,5 x 64 |
| Weight (kg) | 31 | 32 |
| Voltage (V) | 230 | 230 |
| Frequency (Hz) | 50/60 | 50 |
| Current consumption (A) | 2,9 | 2,9 |
| Vacuum (mbar) | 180 | 180 |
| Number of operators | 1 | 1 |
| Useable volume of secretion collector (l) | 3 | 3 |
