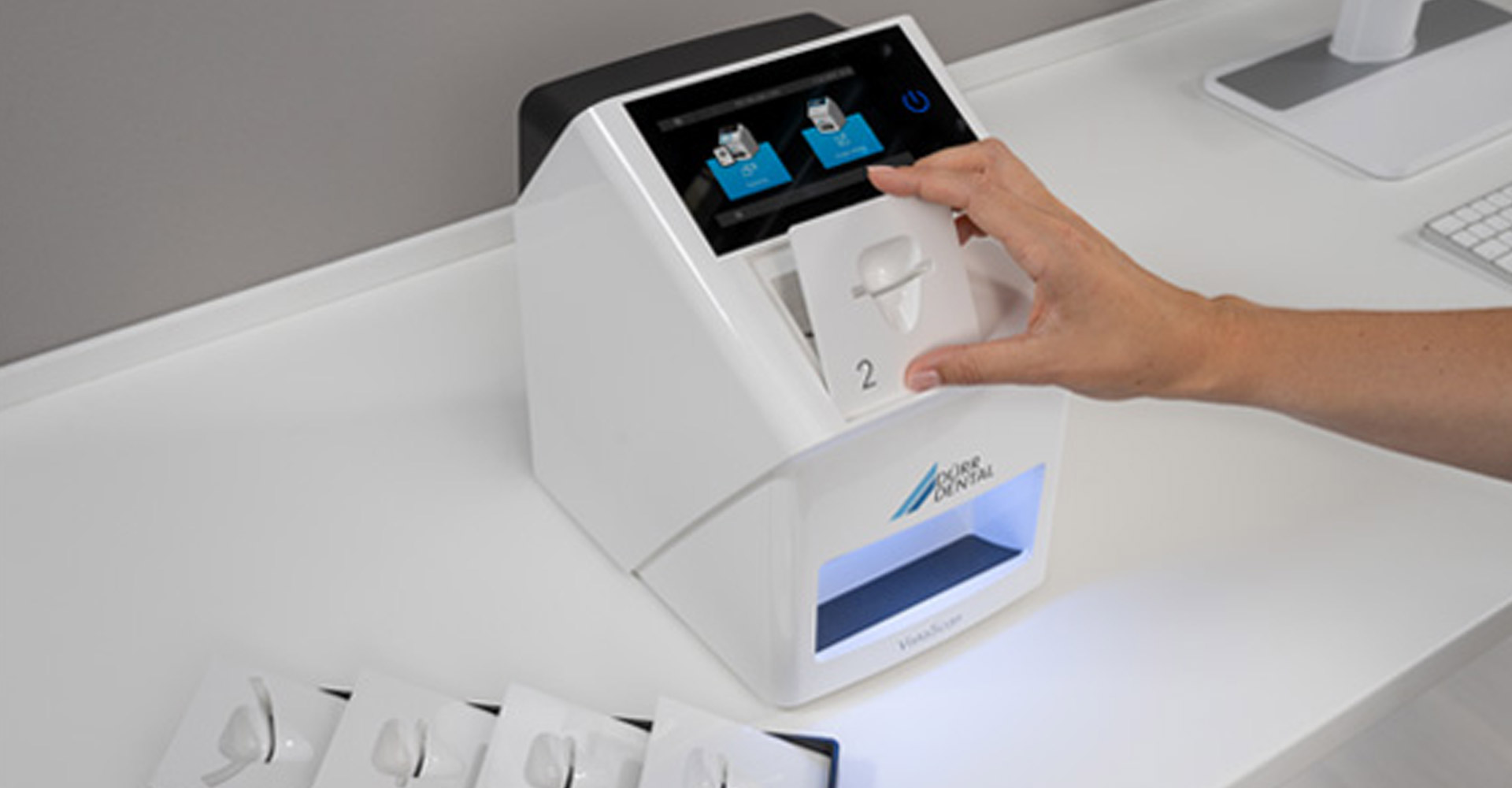

With the Easy Feed concept you can scan image plates very quickly, one after the other. The interchangeable inserts make it possible to digitise all intraoral image plate formats.

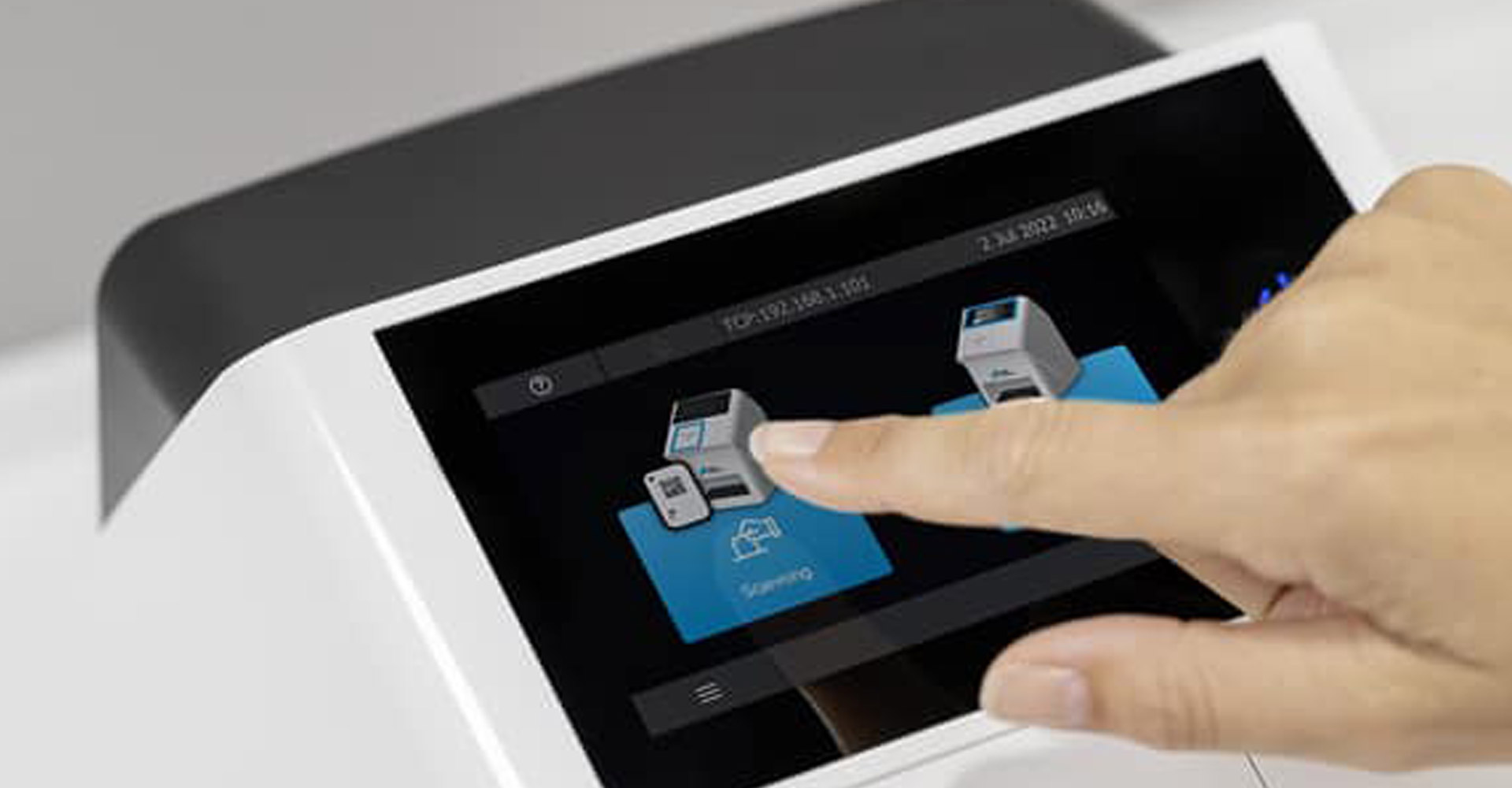

The colour 5" touchscreen display provides a user interface that is very easy to use.

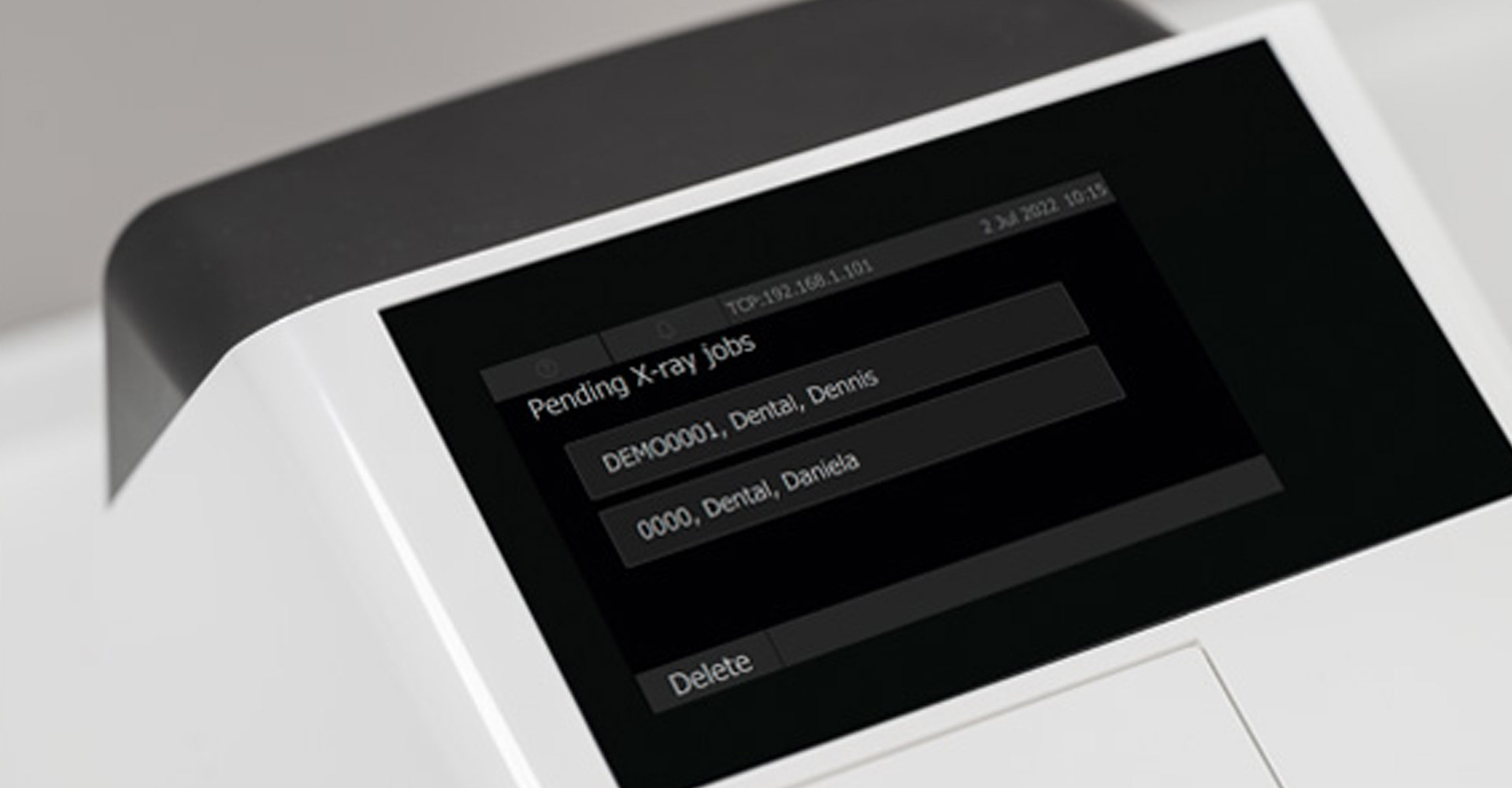

Scanning tasks can be sent simultaneously from different workstations to VistaScan Mini View 2.0. Select the required task on the display, carry out the scan and perform a diagnosis on the PC screen straight away.
| Display | 5" Color-Touch |
|---|---|
| Plate sizes | S0, S1, S2, S3, S4 |
| Theoretical resolution (LP/mm, dpi) | 40 (2.000) |
| Effective resolution (LP/mm, dpi) | 22 (1.100 ) |
| Greyscale (bit) | 16 (65.536) |
| Weight (kg) | 5 |
| Dimensions (H x W x D mm) | 273 x 211 x 258 |
| Standby function | Yes |
| Interfaces | LAN, WLAN |
