Durr CAD CAM Compressors

Compressed air for CAD CAM systems

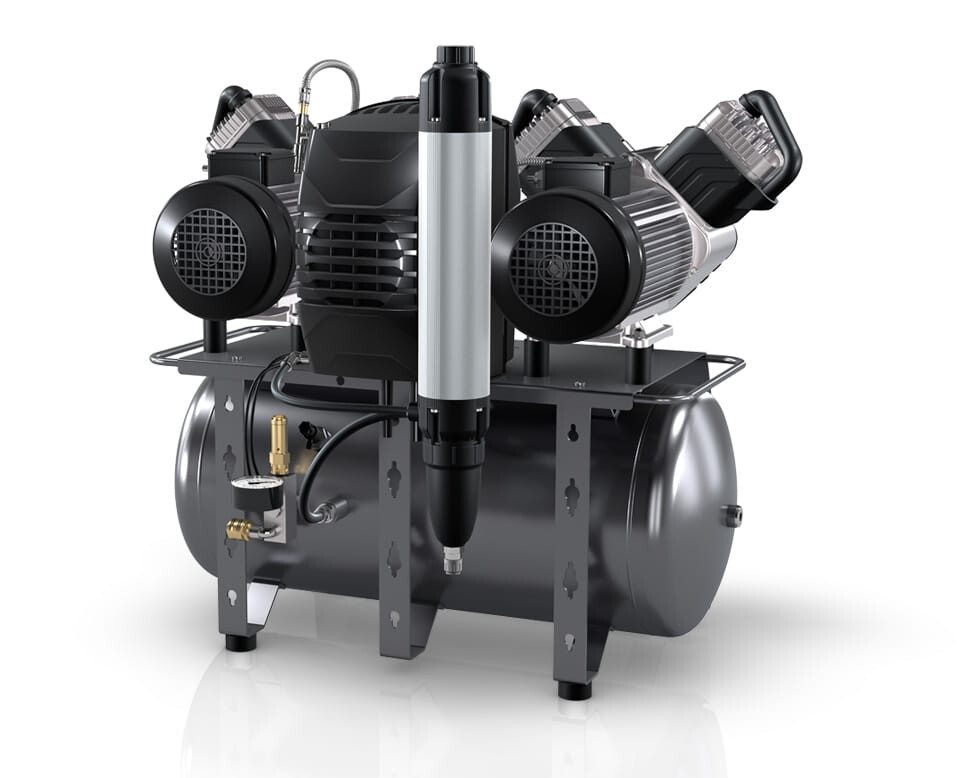

Membrane drying unit

The duty cycle of a compressor unit during operation with a milling machine far exceeds the duty cycle in normal dental practice operation. Thanks to the innovative membrane drying system from Dürr Dental, no regeneration times are necessary. This ensures constantly dry compressed air in continuous operation.

Enquire Now

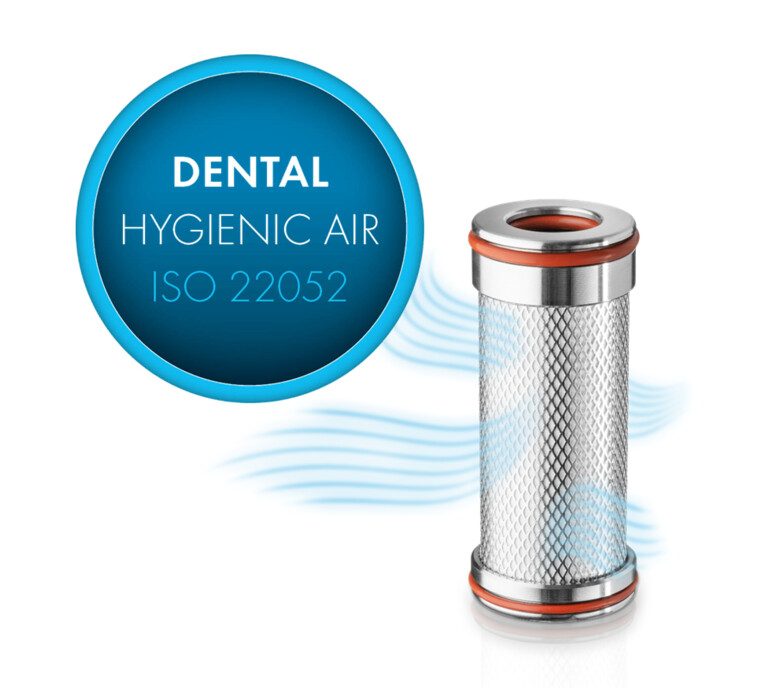

Compressed air quality according to ISO 22052 Chap. 5.3.

Manufacturers of dental milling and grinding machines make clear specifications regarding the quality of the connected compressed air supply in terms of particle, oil and water content. Moist compressed air can cause damage to these devices. Oil can also impair the quality of the milling result. With our membrane drying and bacteria filter, Dürr Dental compressors produce dry and oil-free compressed air – for the optimal result of your work. Dürr Dental CAD CAM compressors supply air of class 2:4:0 in accordance with ISO 8573-1.

Enquire Now

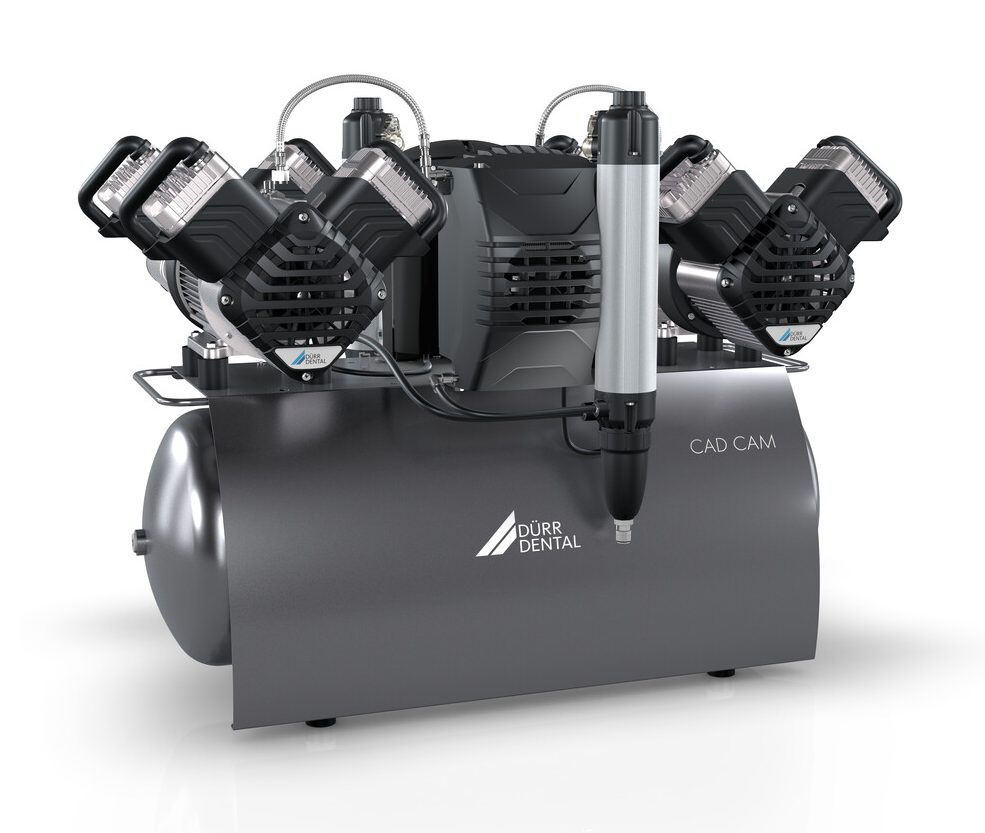

The Tandem Principle

The electronic control of the tandem compressors allows easy adjustment of the pressure range. The two independently operating aggregates ensure operational reliability.

Enquire Now

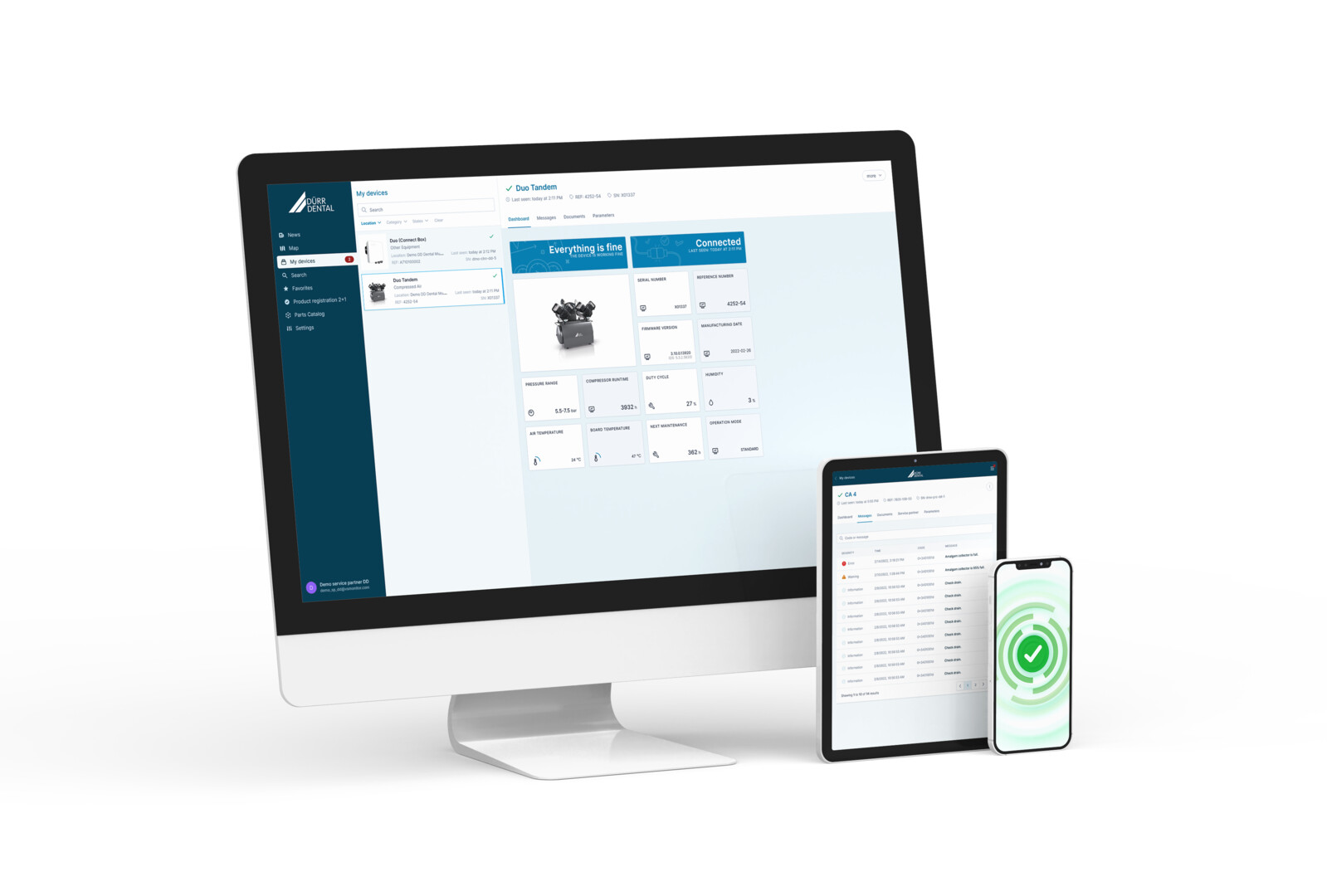

Operational safety with VistaSoft Monitor

With the help of the cloud-based IoT application VistaSoft Monitor, the condition of the CAD CAM compressor can be checked anywhere and at any time. You and participating dealers are also immediately alerted to upcoming maintenance/inspections. If action is required, you will receive an alert immediately.

Enquire Now

Smart Power Mode

The Smart Power Mode ensures adaptive and independent control of the aggregates, which continuously takes the individual compressed air consumption into account. The new firmware also offers more flexibility by extending the pressure range setting from 9 to 9.5 bar.

Enquire Now

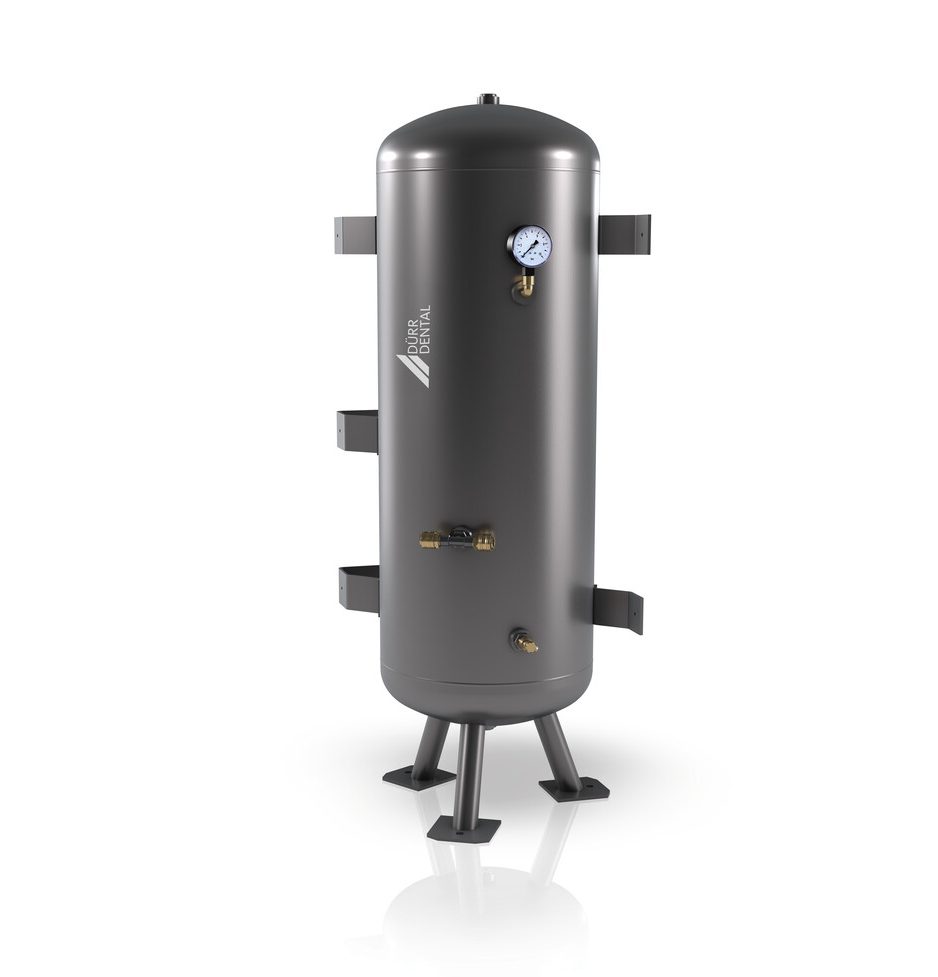

For difficult installation conditions: Buffer tank

Additional buffer volume is required for compressed air line networks with small pipe diameters or long distances between the CAD CAM compressor and milling and grinding machines. The buffer tank ensures a continuous and stable compressed air supply.

Enquire Now

Features

Continuous

Continuous supply of dry and hygienic air, flavourless and odourless, for continuous operation

Reliable

Featuring low-maintenance components for maximum reliability and operational safety for many years to come

Safe

Increased operational safety thanks to early warning messages and automatic maintenance reminders

Flexible

User-friendly adjustment of device settings to match the conditions in your practice or laboratory

Specifications

	Quattro Tandem 1 unit	Quattro Tandem 2 units
Delivery at 5 bar1 (l/min)	258/293	516/586
Pressure range2(bar)	5,5 - 7,5	5,5 - 7,5
Noise level dB(A)	69/70	-
Voltage (V)3	400	400
Tank capacity (l)	90	90
Frequency (Hz)	50/60	50/60
Noise level at 5 bar with housing dB(A)	-	-
Dimensions (H x W x D cm)	82x102x62	82x102x62
Weight (kg)	120	170

	Duo Tandem 1 unit	Trio
Delivery at 5 bar1 (l/min)	125/145	181
Pressure range2(bar)	5,5 - 7,5	6 - 7,8
Noise level dB(A)	66/68	67
Voltage (V)3	400	230
Tank capacity (l)	50	50
Frequency (Hz)	50/60	50
Noise level at 5 bar with housing dB(A)	51/50	49
Dimensions (H x W x D cm)	76 x 75 x 52	76 x 74 x 52
Weight (kg)	70	80

	Duo Tandem 2 units	Quattro
Delivery at 5 bar1 (l/min)	253/292	258/293
Pressure range2(bar)	5,5 - 7,5	6 - 7,8
Noise level dB(A)	69/72	69/70
Voltage (V)3	400	400
Tank capacity (l)	50	50
Frequency (Hz)	50/60	50/60
Noise level at 5 bar with housing dB(A)	51/53	53/54
Dimensions (H x W x D cm)	76 x 79 x 52	76 x 74 x 52
Weight (kg)	100	85

	Duo Tandem 2 units	Quattro
Delivery at 5 bar1 (l/min)	253/292	258/293
Pressure range2(bar)	5,5 - 7,5	6 - 7,8
Noise level dB(A)	69/72	69/70
Voltage (V)3	400	400
Tank capacity (l)	50	50
Frequency (Hz)	50/60	50/60
Noise level at 5 bar with housing dB(A)	51/53	53/54
Dimensions (H x W x D cm)	76 x 79 x 52	76 x 74 x 52
Weight (kg)	100	85

	Quattro P 20
Delivery at 5 bar1 (l/min)	1032/1172
Pressure range2(bar)	5,5 - 7,5
Noise level dB(A)	75/76
Voltage (V)3	400
Tank capacity (l)	90
Frequency (Hz)	50/60
Noise level at 5 bar with housing dB(A)	-
Dimensions (H x W x D cm)	114 x 115 x 77
Weight (kg)	300
