Delivery Systems

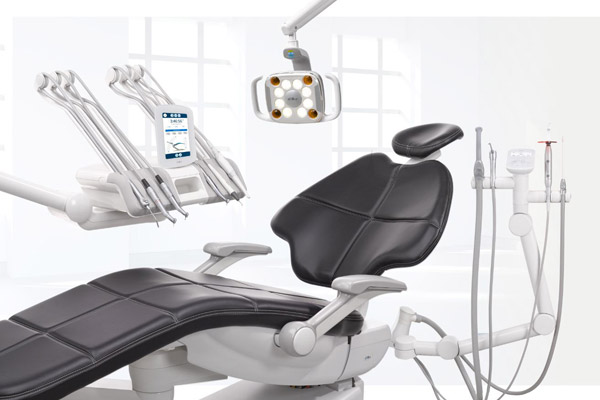

A-dec 300 on 500 Pro
The A-dec 300 on 500 utilises the superior patient experience of the 500 chair combined with the innovative 300 delivery system.
Dynamic simplicity

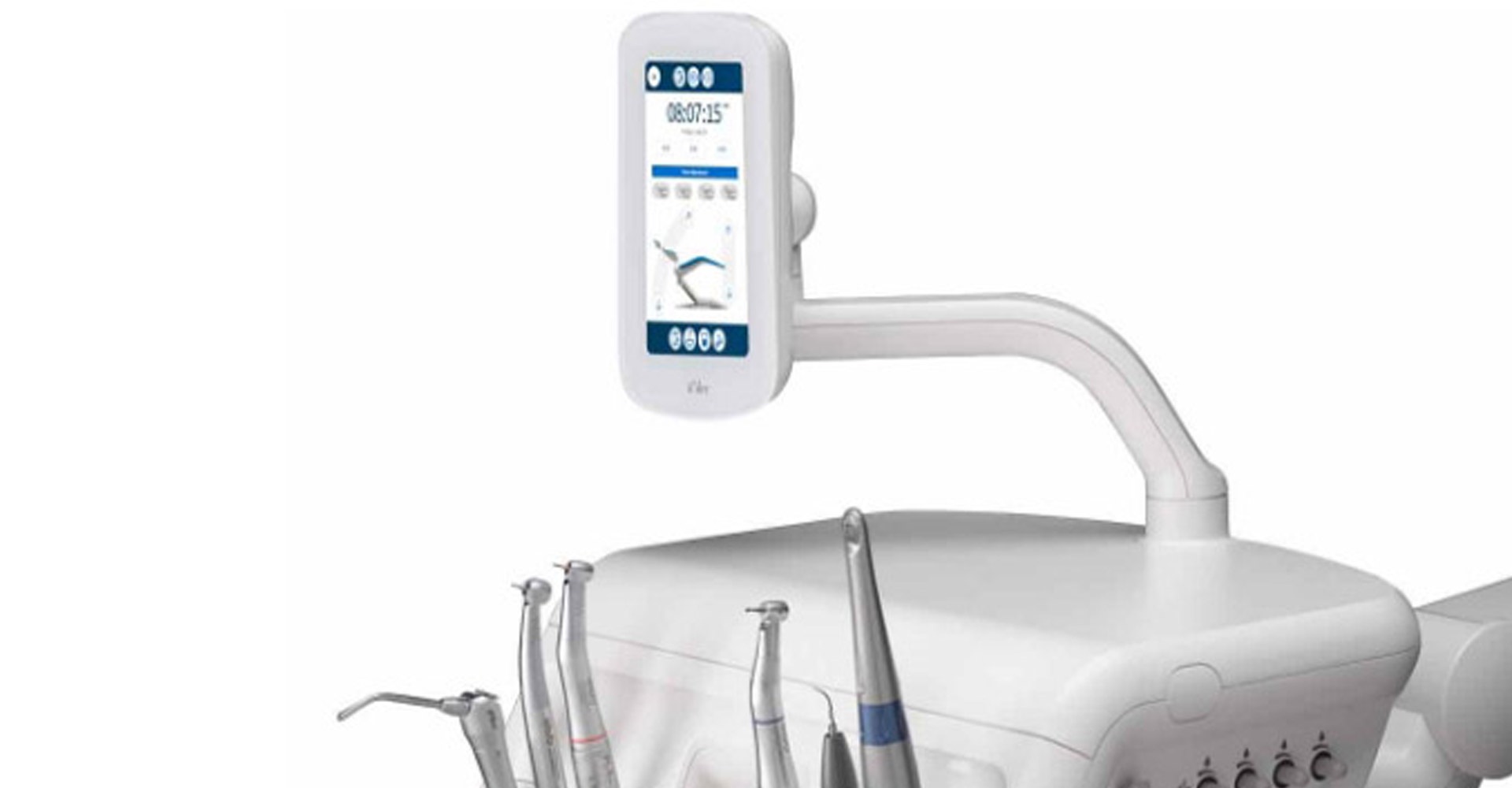

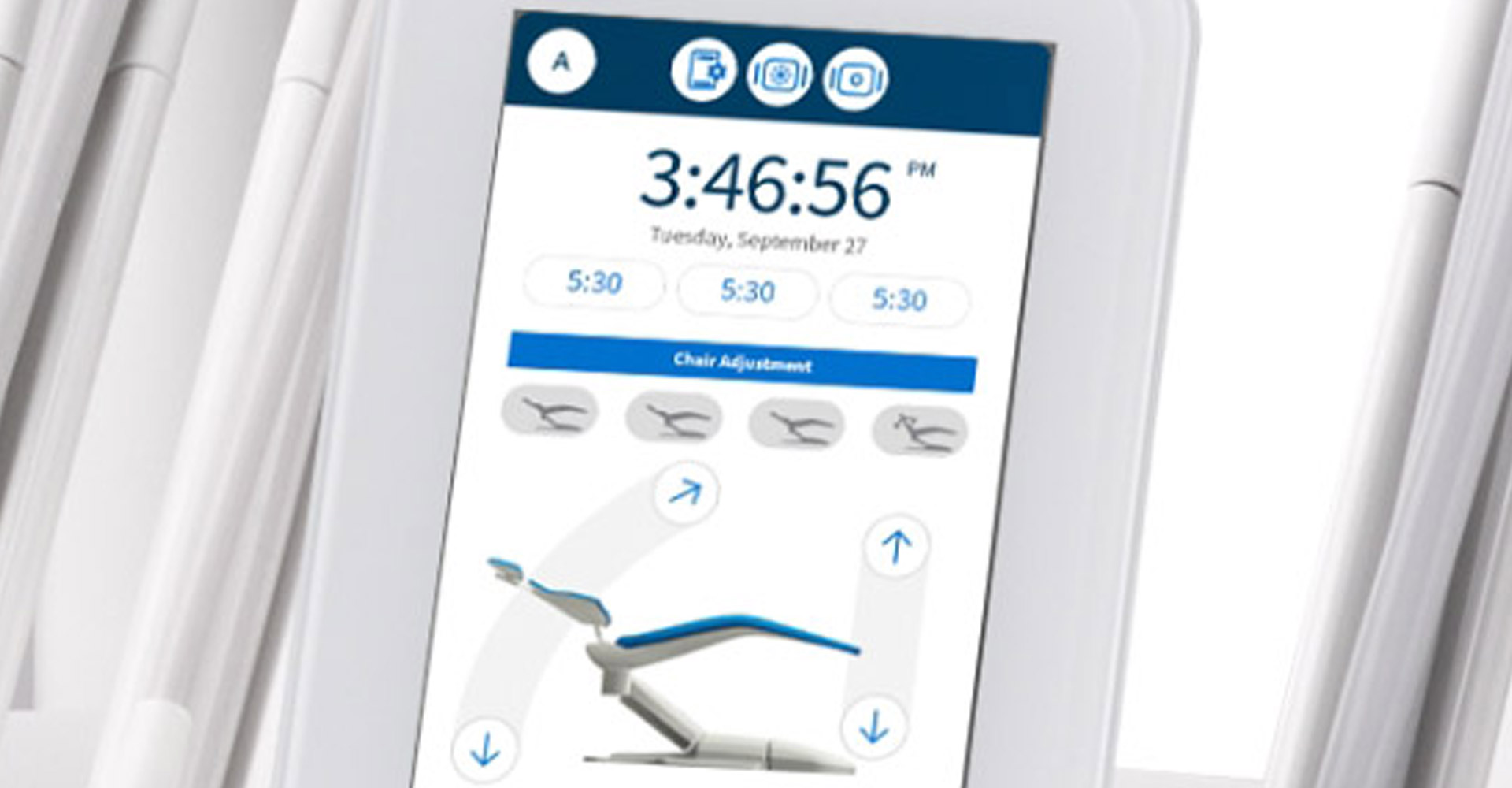

With a 7" glass touchscreen, the Dynamic Screen 7 (DS7) displays only the information you need when you need it.
Intelligent control
Intuitive, connected equipment is consistent and predictable. The technology keeps up with you—not the other way around.
Flexible integration
A-dec products are engineered to last, but technology is ever-changing. The ability to integrate new clinical capabilities with the existing platform means your equipment can evolve with you—and your practice.

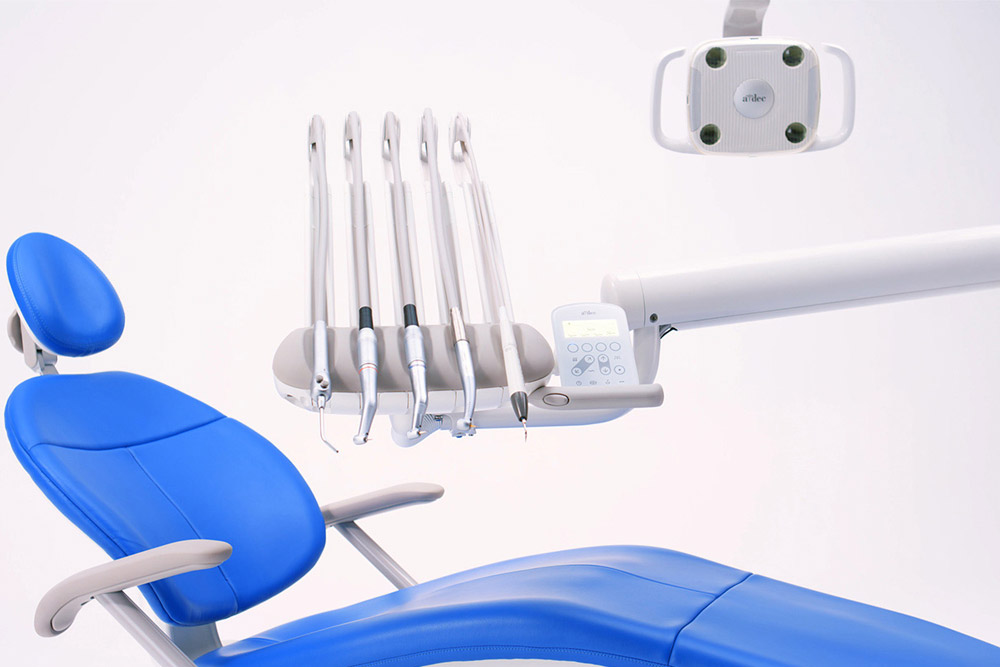

A-dec 300 Pro
Flexible design
The modular, compact A-dec 300 Pro delivery system is easy to customise. Get the configuration that fits you today, with the flexibility to upgrade in the future. It's a system that can grow with your dental practice.
Accessible comfort
Everything you need is easy to position and comfortably within reach. Close-in to your patient, your posture is healthy and your view is clear.
Improved vision
The A-dec 300 LED dental light floods the oral cavity with light and provides a light intensity of up to 25,000 lux.
Touchless on/off
The A-dec 300 LED dental light features a touchless on/off sensor and auto on/off using chair presets to simplify asepsis protocols and minimise touchpoints.
Specifications
| A-dec 300 Pro delivery system | Traditional and Continental | Side |
|---|---|---|
| Mount options | A-dec 300, 400, 500 dental chairs | A-dec Preference Collection, wall mount |
| Arm system | Balanced flexarm with air brake or manual height adjustment | Balanced flexarm without air brake |
| USB 2.0 support | Yes | Yes |
| Ancillary accommodation | Up to 3 | Up to 3 |
| Handpiece holder positions | 4 + syringe | 4 + syringe |
| Left/right conversion | Yes, when Radius mounted | No |
| User interface | CP5i or no control pad | CP5i or no control pad |
| Software updatable | With A-dec+ Gateway (optional) | With A-dec+ Gateway (optional) |
| Control block | 3 or 4-position | 3 or 4-position |
| Water coolant vaporiser | Standard with CP5i | Standard with CP5i |
| Quad-voltage intraoral light source | Optional | Optional |
| Foot control | Wet/dry disc (with or without chip blower) or lever foot control | Wet/dry disc (with or without chip blower) or lever foot control |
Specifications
| A-dec 500 Pro delivery system | Traditional and Continental | 12 o'clock duo |
|---|---|---|
| Mount options | A-dec 511 dental chair (Radius) | A-dec Inspire, Preference Collection, standalone |
| Arm system | Positive positioning, balanced flexarm with air brake | Independent manual height adjustment for doctor's controls and assistant's worksurface |
| Integration | 15' (4.5 m) USB 2.0 cable Powered USB hub (optional) | 15' (4.5 m) USB 2.0 cable Powered USB hub (optional) |
| Ancillary accommodation | Up to 6 | Up to 5 |
| Handpiece holder positions | 5 + syringe | 5 + syringe |
| Left/right conversion | Yes | Yes |
| User interface | DS7 | DS7 |
| Software updatable | Yes | Yes |
| Control block | 4-position | 4-position |
| Water coolant vaporizer | Standard | Standard |
| Quad-voltage intraoral light source | Standard | Standard |
| Time display | Yes | Yes |
| Timed flush | Yes | Yes |
| Foot control | Wet/dry disc with chip blower (standard), lever foot control (optional) | Wet/dry disc with chip blower (standard), lever foot control (optional) |
Tailored individuality
Colour and style, delivery options, foot controls and instruments. You deserve to work your way, right down to the last stitch. We believe in choice.

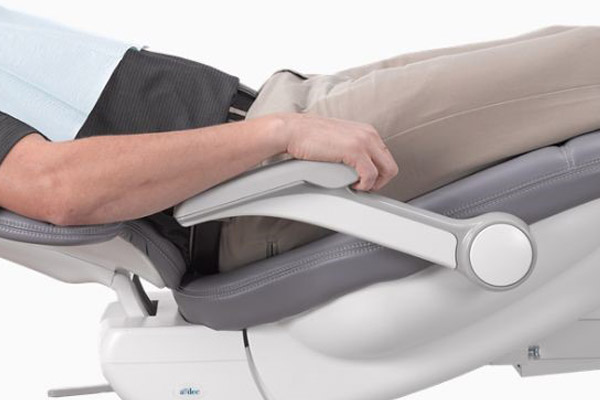

Attentive design
Precision hydraulic motion allows quiet, gentle stops and starts during patient positioning, eliminating anxiety from jarring movements. Coupled with the virtual pivot, which synchronises movement with the natural motion of the patient, there's no readjusting when the chair is reclined or returned.

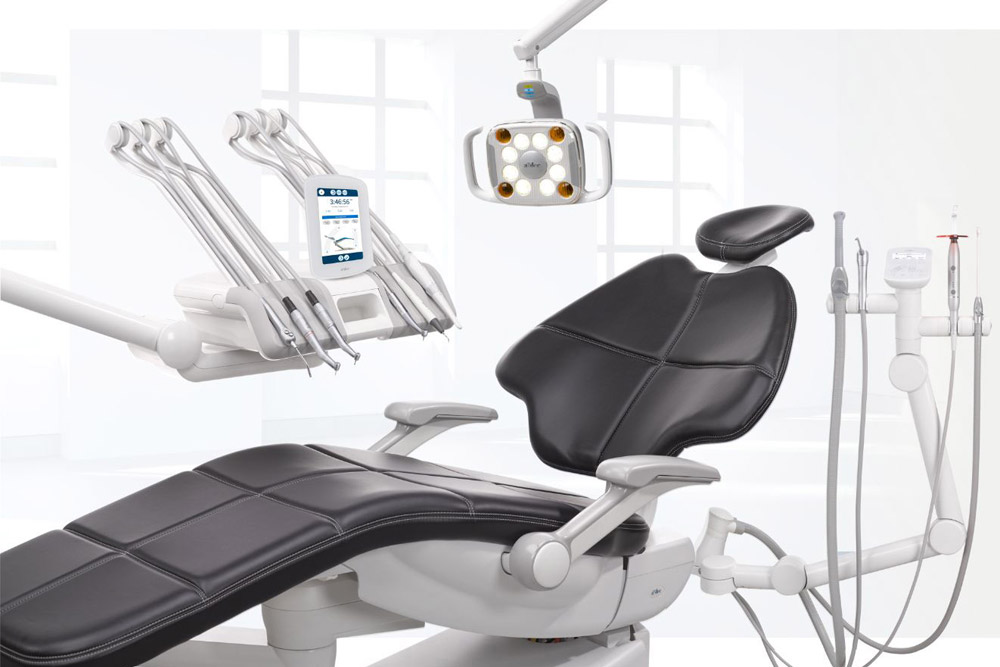

A-dec 500 Pro
Tailored individuality
Colour and style, delivery options, foot controls and instruments. You deserve to work your way, right down to the last stitch. We believe in choice.
Attentive design
Precision hydraulic motion allows quiet, gentle stops and starts during patient positioning, eliminating anxiety from jarring movements. Coupled with the virtual pivot, which synchronises movement with the natural motion of the patient, there's no readjusting when the chair is reclined or returned.
Easy on the eyes
Innovative light distribution creates a uniform pattern with a “stadium” effect to minimise shadowing. A feathered edge light pattern reduces eye fatigue.
Clean and simple
Touchless sensor for on/off activation combines with touchpad control and auto on-off using chair presets to maximise light activation options while simplifying asepsis protocols and minimising touchpoints. Easier to clean and fewer barriers are needed.
Specifications
| A-dec 500 Pro delivery system | Features |
|---|---|
| Base height range | Low point: 13.5" (343 mm) High point: 31.5" (800 mm), preset to 29" (737 mm) from factory |
| Backrest | Thin, flexible. 1.25" (32 mm) with formed upholstery |
| Chair swivel | 60° (30° each side of center) |
| Lift system | Soft start/stop hydraulic drive |
| Headrest | Dual-articulating gliding headrest with lever release |
| Armrests | 2-position |
| Power supply | Integrated 300-watt |
| Chair control | Doctor's touchscreen / assistant's control pad or optional foot switch |
| Mount style | Floating - 2" post mount or Radius left/right |
| Upholstery options | Sewn or formed |
| UL load rating |
UL load rating
UL rated to 500 lb (227 kg) maximum patient load
Load rating is based on UL requirement of 4X (2000 lb/907 kg) overload static testing |
